How to get a freewheel off a crank - the easy way

14 posts in this topic

Here is a short and simple guide of how to get a freewheel off a crank the easy way. Even the most stubbornnest of freewheels will come off this way. The tools required are:

A vice

A length of M12 threaded bar and 2 m12 nuts and washers - these are easily available from any nut and bolt shop and are very cheap, they may even have an off cut knocking about if you ask nicely like I did. About 10 inches is enough for this job.

Freewheel removal tool - splined or 4 prong

A levering bar. For this I've used a piece of steel tube, but a breaker bar or an old pair of handlebars will do the job.

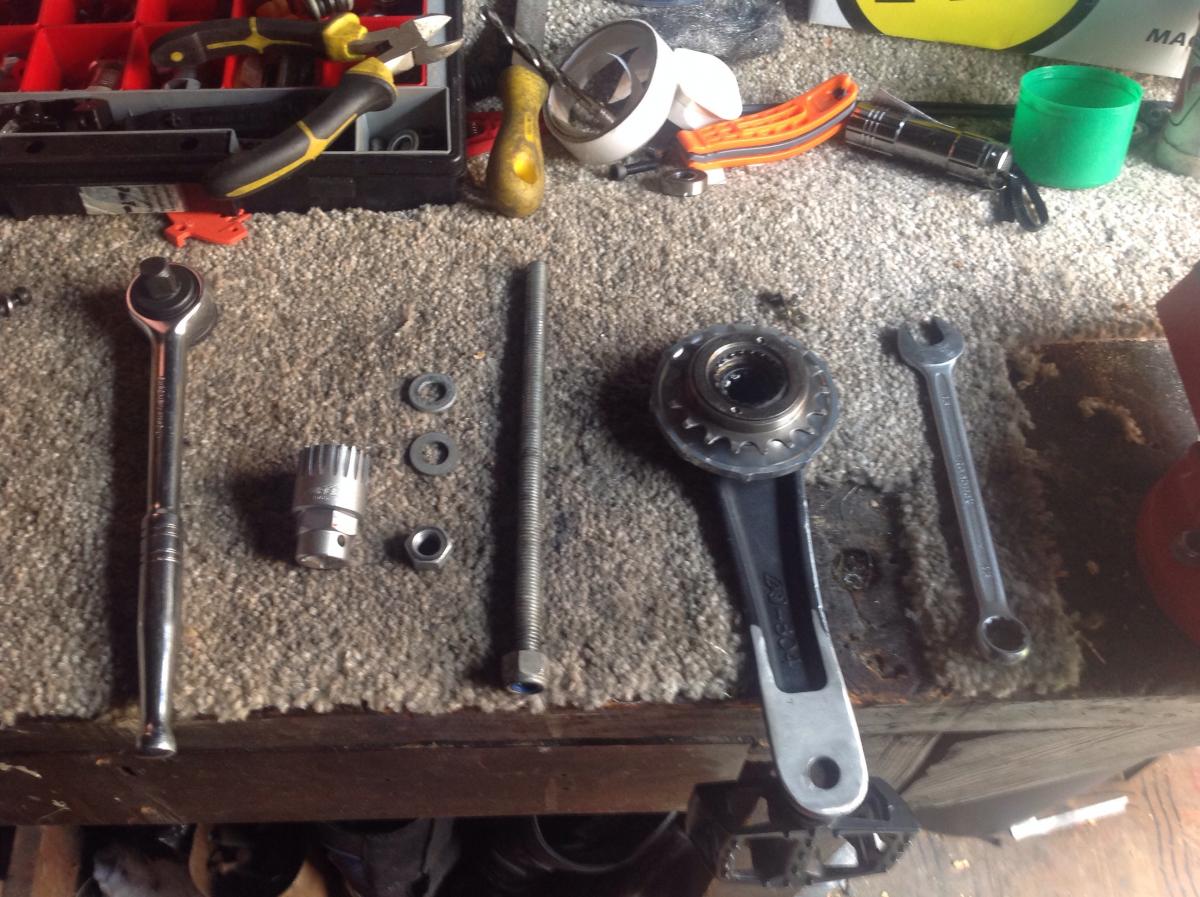

For this job I'm using a splined tool, the one you use to get tensile freewheels and Isis bb's out

post-29242-0-47527700-1384523949_thumb.j

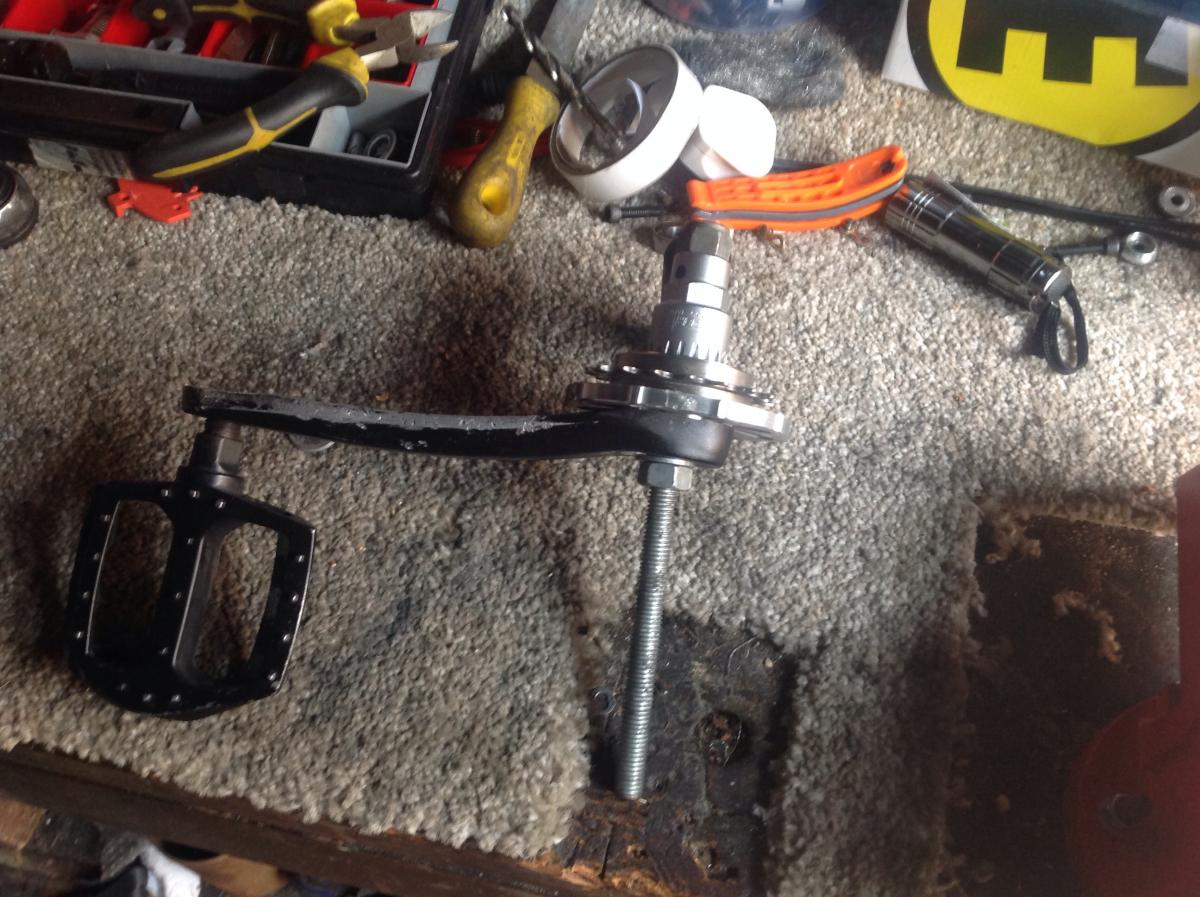

Remove your crank from the bike, with the pedal still attached and assemble the tool and threaded bar as shown in the picture below

post-29242-0-39466600-1384524347_thumb.j

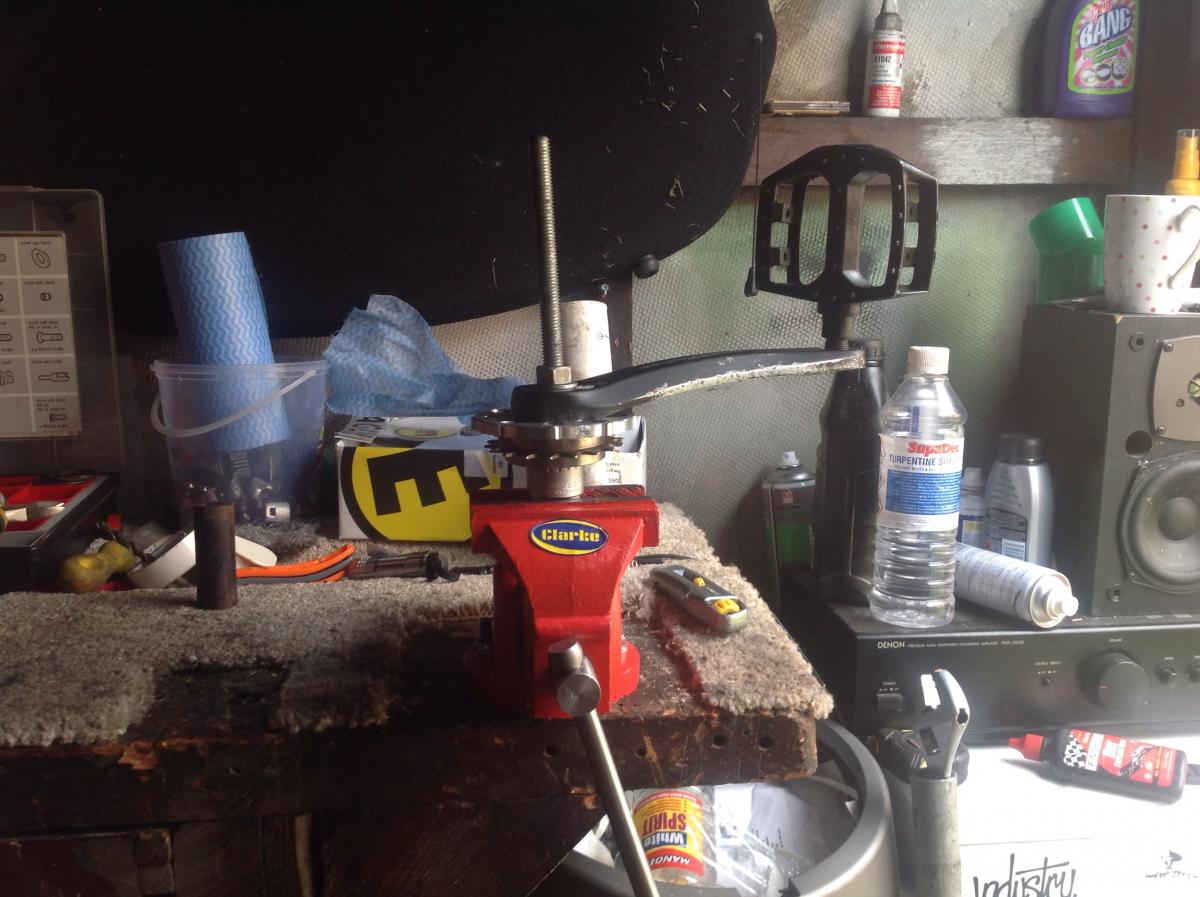

Then take the whole assembly, and put it in the vice at such an angle which gives you enough clearance for the levering bar. Do it up TIGHT! The last thing you want it for it to slip out and cause injury

post-29242-0-43844100-1384524478_thumb.j

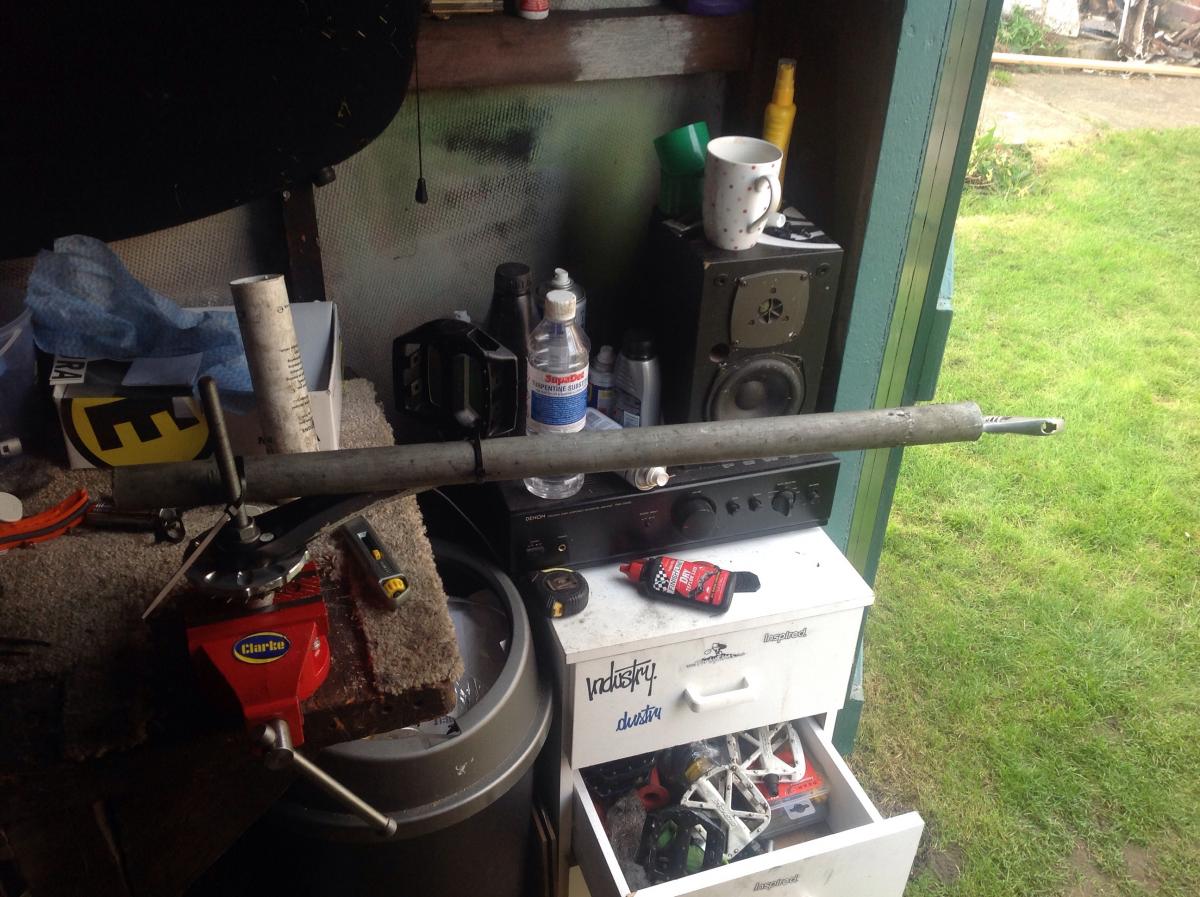

Then place the levering bar behind the threaded bar that sticks out, and in front of your pedal which is still attached to the crank arm. I've only cable tied it on for photo purposes

post-29242-0-78029500-1384524713_thumb.j

Then apply some newtons to the right hand side of the levering bar, using your left hand as a steady on the small piece of bar poking out. This will give you enough leverage to get it off. This method has never failed me yet

I will post up the vice free way of removing a freewheel when our lass gets out of the bath and can take photos

Dan

1 person likes this

Share this post


Link to post
Share on other sites

Pretty much how I do mine, except I take the pedal off and slide the pole over the crank with a sleeve of inner tube on the crank to protect it from getting damaged.

Nice guide.

Share this post


Link to post
Share on other sites

did you ever post a non vice version?

Share this post


Link to post
Share on other sites

did you ever post a non vice version?

There's a way using a drain cover I think, can't remember how.

Share this post


Link to post
Share on other sites

There's a way using a drain cover I think, can't remember how.

Had to do it with Josh in Plymouth, and then again in Hull.

Wedge the bb tool in a roadside drain, and then use the same method as normal.

Share this post


Link to post
Share on other sites

Had to do it with Josh in Plymouth, and then again in Hull.

Wedge the bb tool in a roadside drain, and then use the same method as normal.

Yeah that's it. Mad stuff ha.

Share this post


Link to post
Share on other sites

did you ever post a non vice version?

I'll do it at the weekend. It's quite simple really

Share this post


Link to post
Share on other sites

I'll do it at the weekend. It's quite simple really

do ogres so I can have that bash :)

Share this post


Link to post
Share on other sites

I'll do it at the weekend. It's quite simple really

Wicked, would be useful to know for my crew.

Share this post


Link to post
Share on other sites

Wicked, would be useful to know for my crew.

Jack just explained how?

Share this post


Link to post
Share on other sites

Jack just explained how?

Jack explained his method, Bing may have another way.

1 person likes this

Share this post


Link to post
Share on other sites

I do, I'll do it Monday morning after tarty days. It's even easier, I showed Chris h and he was well impressed

Share this post


Link to post
Share on other sites

This method is great! Way easier than the "slide a tube over the crank" method, and no crank damage. Gonna try this today, thanks for sharing.

Edited by Scoox

Share this post


Link to post
Share on other sites

The none vice way is just as easy. I wedge the rig as shown above under a car tyre or under the corner of my shed, and use a 24mm deep reach socket and a 4ft breaker bar on the tool. Comes off just as easy

Share this post


Link to post
Share on other sites
