Scott Gibbs Posted March 22, 2015 Report Share Posted March 22, 2015 Which Magura hose splitters would you kind folks recommend? Want to freshen up my brake set up and want to try a hose splitter as I've heard they even up the action of the slaves hitting the rim? Quote Link to comment Share on other sites More sharing options...
Dazza1414 Posted March 22, 2015 Report Share Posted March 22, 2015 only 3 options I think, monty trialtech or raceline Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted March 22, 2015 Report Share Posted March 22, 2015 Trialtech. Easiest to fit, most durable. In theory it shouldn't even out the slaves, but for some reason in practice most people have found an improvement. Quote Link to comment Share on other sites More sharing options...
Scott Gibbs Posted March 22, 2015 Author Report Share Posted March 22, 2015 What fittings do I need for the Trialtech ones Adam? Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted March 22, 2015 Report Share Posted March 22, 2015 M6 barbed fittings. Should be on the product description, if not my apologies, let me know and I'll add it! Quote Link to comment Share on other sites More sharing options...
Scott Gibbs Posted March 22, 2015 Author Report Share Posted March 22, 2015 It is I did see it! Ha ha so you'd recommend the Trialtech one? Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted March 22, 2015 Report Share Posted March 22, 2015 Personally yes. Quote Link to comment Share on other sites More sharing options...
Scott Gibbs Posted March 22, 2015 Author Report Share Posted March 22, 2015 Ok is it the m8 bolts I need to block off the extra hole on the slave cylinders? Quote Link to comment Share on other sites More sharing options...
niconj Posted March 22, 2015 Report Share Posted March 22, 2015 in practice most people have found an improvement. I haven't with the Trialtech one. That's why I wouldn't bother. Quote Link to comment Share on other sites More sharing options...
isitafox Posted March 23, 2015 Report Share Posted March 23, 2015 Ok is it the m8 bolts I need to block off the extra hole on the slave cylinders? Personally I would block up the M6 holes and use shroud nuts to join the hose to the slaves. Quote Link to comment Share on other sites More sharing options...
ZArgrave Posted March 23, 2015 Report Share Posted March 23, 2015 Personally I would block up the M6 holes and use shroud nuts to join the hose to the slaves. The m8 isn't a real m8 lol some fine thread so it'll be a pain finding something to block it off with. Quote Link to comment Share on other sites More sharing options...
isitafox Posted March 23, 2015 Report Share Posted March 23, 2015 Chainring bolts are the same pitch (big hole through the middle may cause problems though...) 1 Quote Link to comment Share on other sites More sharing options...

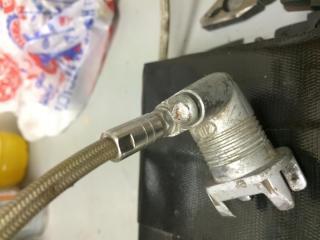

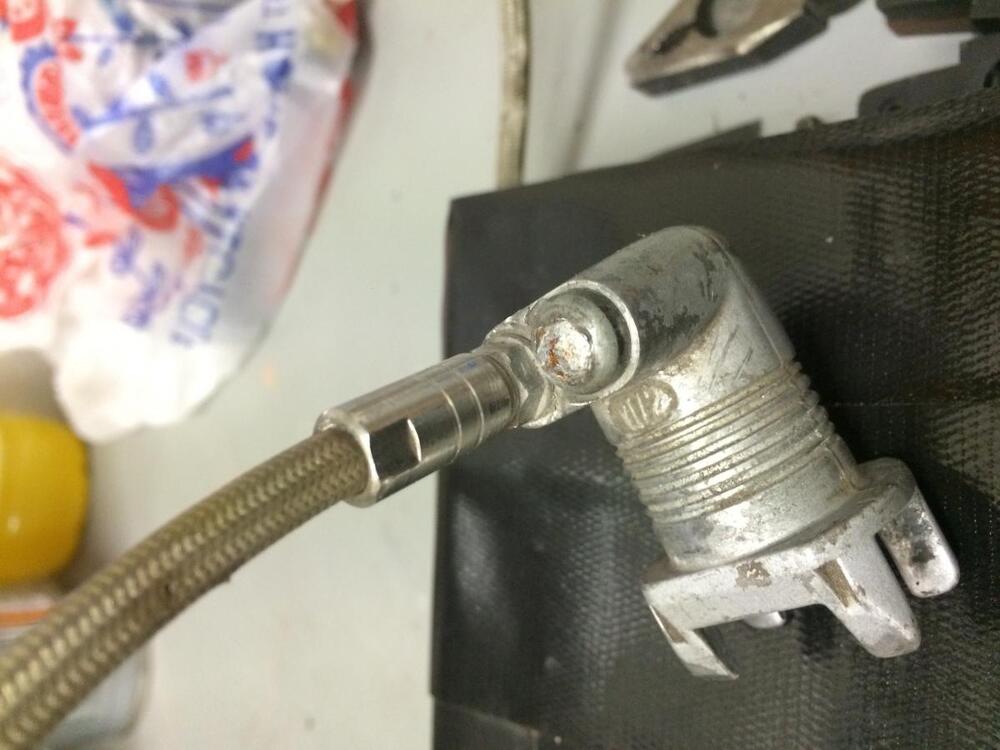

Scott Gibbs Posted March 23, 2015 Author Report Share Posted March 23, 2015 This bolt is an M6? Quote Link to comment Share on other sites More sharing options...
isitafox Posted March 23, 2015 Report Share Posted March 23, 2015 I'm confused, what was the question?? Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted March 23, 2015 Report Share Posted March 23, 2015 Yes. It's f**ked though, get a new one, lol. 1 Quote Link to comment Share on other sites More sharing options...
Scott Gibbs Posted March 23, 2015 Author Report Share Posted March 23, 2015 I'll need 2 of those to blank off the holes left by using the splitter then? I did notice that Adam I only got the brakes yesterday so it'll need replacing Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted March 23, 2015 Report Share Posted March 23, 2015 Yes, providing you have M6/M8 slaves and use a shroud nut / olive between the splitter and slave. Quote Link to comment Share on other sites More sharing options...
Scott Gibbs Posted March 23, 2015 Author Report Share Posted March 23, 2015 They're 04' maguras if that helps? Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted March 23, 2015 Report Share Posted March 23, 2015 Likely to be one M6/M8 and the other M8/M8, but you should check. Quote Link to comment Share on other sites More sharing options...
niconj Posted March 24, 2015 Report Share Posted March 24, 2015 It's a M8x0.75 bolt. Any standard M8 bolt won't fit. Quote Link to comment Share on other sites More sharing options...
