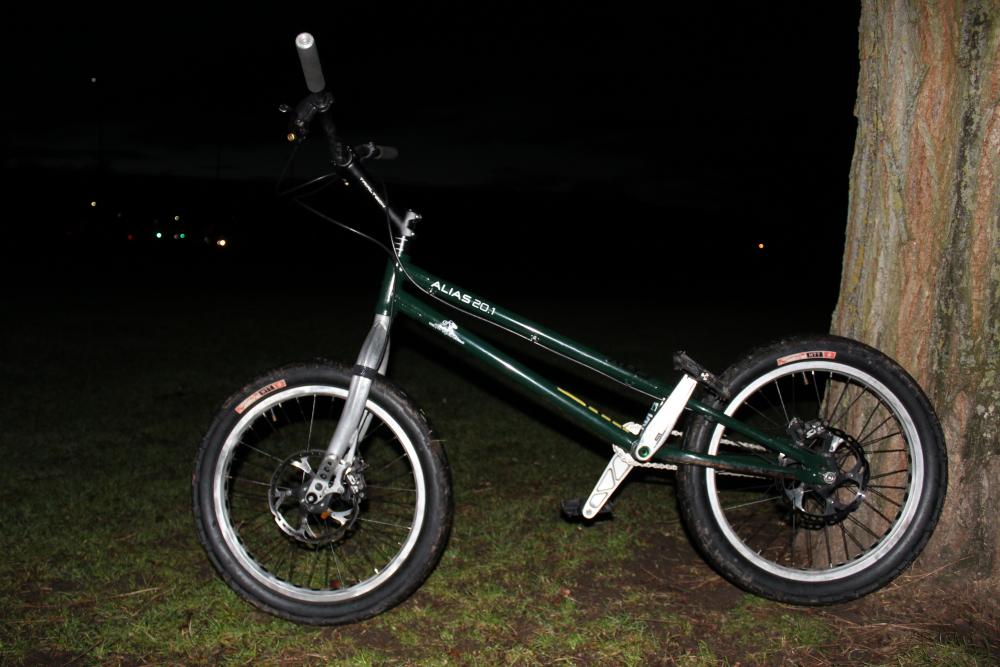

Herbertlemon102 Posted January 28, 2017 Report Share Posted January 28, 2017 (edited) Ive finally got my alias at the stage where i want it. just a few tiny details left. brief spec Saint m810 brakes 180mm ice tech rotors trialtech everything hope rear hub/bar ends i moved back down to a 180 at the front as the 203 would have been just death Edited January 28, 2017 by Herbertlemon102 4 Quote Link to comment Share on other sites More sharing options...
niconj Posted January 28, 2017 Report Share Posted January 28, 2017 Please post a daylight picture. 1 Quote Link to comment Share on other sites More sharing options...
Herbertlemon102 Posted January 29, 2017 Author Report Share Posted January 29, 2017 appreciate the dark backgrounds 2 Quote Link to comment Share on other sites More sharing options...
monkeyseemonkeydo Posted January 29, 2017 Report Share Posted January 29, 2017 I still think they deserve a saddle... 2 Quote Link to comment Share on other sites More sharing options...
Herbertlemon102 Posted January 29, 2017 Author Report Share Posted January 29, 2017 (edited) 55 minutes ago, monkeyseemonkeydo said: I still think they deserve a saddle... it would have to have a drastic redesign or a foot long seatpost the picture may be deceiving, but where the seattube is in comparison to the tyre is literally nothing. nowhere near enough space for a seat unless you had a stupid seatpost or the frame was deigned more bmx-y. which i guess is why the arcade exists Edited January 29, 2017 by Herbertlemon102 Quote Link to comment Share on other sites More sharing options...
aener Posted January 29, 2017 Report Share Posted January 29, 2017 3 hours ago, monkeyseemonkeydo said: I still think they deserve a saddle... Only if they went full BMX look (bars and stem with appropriate geo changes to accommodate). I'd be on board for that (it's actually something I suggested at one point, but nothing ever came of it) and agree that would look nice, but then that'd be because it would look like a nice BMX The mod bar-and-stem with a saddle is the worst looking combination I've ever seen on a 20" bike, and the day it happens to the Alias will be the day I stop having any input or affiliation with them 3 Quote Link to comment Share on other sites More sharing options...
Ben Davies Posted January 29, 2017 Report Share Posted January 29, 2017 Very cool indeed, is the rear hub spacing 135mm or 116mm? If 116 then how did you get the hope hub in there? If you've done some sort of hub modification, please tell! Quote Link to comment Share on other sites More sharing options...

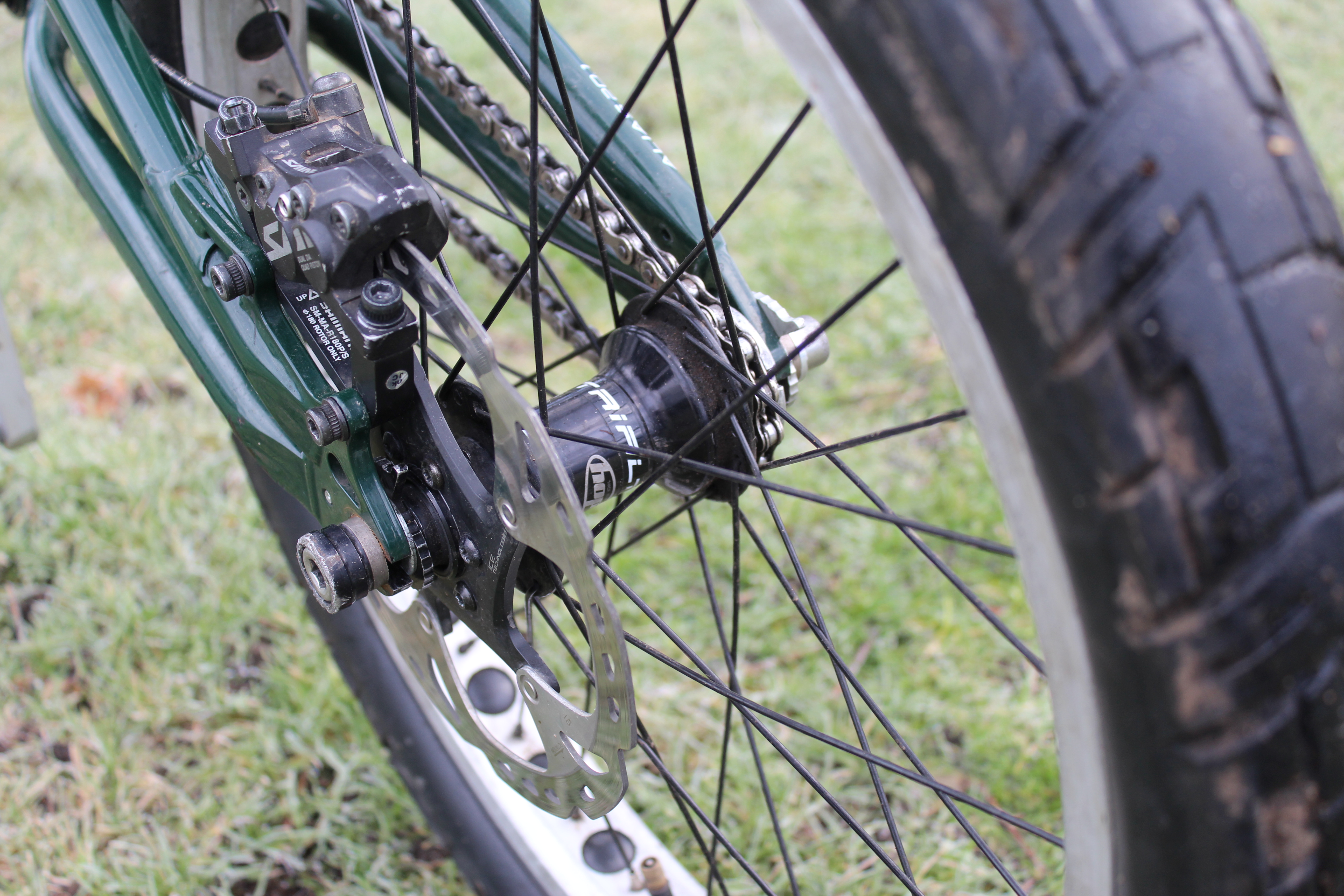

Herbertlemon102 Posted January 29, 2017 Author Report Share Posted January 29, 2017 2 minutes ago, Cyder man said: Very cool indeed, is the rear hub spacing 135mm or 116mm? If 116 then how did you get the hope hub in there? If you've done some sort of hub modification, please tell! its a 116mm spaced frame, with a custom 110mm pro2 evo ss! (plus cams/ disc spacing) machined axle, bearings relocated, freehub machined down and threaded for an external lockring, disc tabs and end caps appropriately modified/machined. which means theres absolutely zero dish all done by alex. 2 Quote Link to comment Share on other sites More sharing options...
Herbertlemon102 Posted January 29, 2017 Author Report Share Posted January 29, 2017 that may give a slightly better look at it.. 2 Quote Link to comment Share on other sites More sharing options...
Ben Davies Posted January 29, 2017 Report Share Posted January 29, 2017 (edited) Thanks for the info... Was that an expensive process? The reason I'm asking is I'm toying with the idea of getting one of these frames at some point and a hope hub would be awesome... Edited January 29, 2017 by Cyder man 1 Quote Link to comment Share on other sites More sharing options...
Herbertlemon102 Posted January 29, 2017 Author Report Share Posted January 29, 2017 1 minute ago, Cyder man said: Thanks for the info... Was that an expensive process? The reason I'm asking is I'm toying with the idea of getting one of these frames at some point and a hope hub would be awesome... it was reasonable. especially for the amount of work done. there were a few niggles i had to fix, but they were very very minor and it was alex's first time doing the 80ep hub. as far as im aware, josh leech did flipps rear pro4 in his. 1 Quote Link to comment Share on other sites More sharing options...
monkeyseemonkeydo Posted January 30, 2017 Report Share Posted January 30, 2017 11 hours ago, aener said: Only if they went full BMX look (bars and stem with appropriate geo changes to accommodate). I'd be on board for that (it's actually something I suggested at one point, but nothing ever came of it) and agree that would look nice, but then that'd be because it would look like a nice BMX The mod bar-and-stem with a saddle is the worst looking combination I've ever seen on a 20" bike, and the day it happens to the Alias will be the day I stop having any input or affiliation with them Haha, fair enough. I thought Eskimo's Triton almost pulled it off... 1 Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted January 30, 2017 Report Share Posted January 30, 2017 4 Quote Link to comment Share on other sites More sharing options...
monkeyseemonkeydo Posted January 30, 2017 Report Share Posted January 30, 2017 Lol Ah, I see the problem. You need to match the seat angle to the stem! 3 Quote Link to comment Share on other sites More sharing options...
