Wantedinspiredarcade

Crank arm length... for street trials...

14 posts in this topic

Hey everyone, what are your opinions on crank arm length?  I always read that it’s down to personal preference... this is the general answer to most things I guess... But surely if you’re 6”3 or 5”6 it has an influence on crank arm length feel...?

So my question is (if you’re new to Trials so don’t yet have a preference...) what would be your thoughts / opinions for a 5”8 newbie to modern street trials bikes. Learning street, park, bmx moves and general street trials moves.

PS; If the bike geo / wheel size plays a role in your advice... then I’m building up a 24inch Inspired Arcade v2.

Thanks in advance for any advice :)

Share this post


Link to post
Share on other sites

I generally go shorter if possible...165-170 unless I want to make my gear ratio slightly lighter in which case I'll run longer cranks.

Shorter cranks are (slightly) stronger as there's less leverage on them, you get more ground clearance for hooks and stuff and I feel it's slightly easier to balance with your feet closer together

3 people like this

Share this post


Link to post
Share on other sites
3 hours ago, Ali C said:

I generally go shorter if possible...165-170 unless I want to make my gear ratio slightly lighter in which case I'll run longer cranks.

Shorter cranks are (slightly) stronger as there's less leverage on them, you get more ground clearance for hooks and stuff and I feel it's slightly easier to balance with your feet closer together

I couldn't agree more. Even with a manual it's easier to get the weight back with your feet closer.

1 person likes this

Share this post


Link to post
Share on other sites

Also, especially on 24" bikes with 135 rear ends, shorter cranks will interfere less with the chainstays.

2 people like this

Share this post


Link to post
Share on other sites

Thanks guys this has really helped! I’m going to go for 165mm then :) I’m also a big fan Ali C you’re awesome!

So now for the techie part...

The Inspired Arcade V2 Bashring says it will fit most bmx cranks with a micro drive hole...

I’ve found some 165mm Colony 22s cranks (I’ll add the links below) that have a micro drive hole and a 22mm spindle...

I see that the Inspired Arcade BB V2 can take a 22mm spindle...

So, will it all fit together on my V2 Arcade frame? Is it this simple? Or am I missing something when crossing over from bmx parts to MTB?

I’m confused about spindle length, are bmx spindles different lengths to MTB ones??

It also adds to my confusion that I’ve seen loads of custom built Inspired Arcades on the internet and nobody is running bmx cranks on there... (apart from the black Inspired specially made versions that only come in 175mm...

Share this post


Link to post
Share on other sites

In all honesty if you're gonna spend approx £130-£140 on cranks, approx £30 on the BB & £70 on the chainring then I'd just opt for the full inspired set that has it all for £230. Wouldn't be too hard to strip the cranks and polish them up (Y)

1 person likes this

Share this post


Link to post
Share on other sites
On 26/06/2020 at 9:11 PM, justinlock said:

In all honesty if you're gonna spend approx £130-£140 on cranks, approx £30 on the BB & £70 on the chainring then I'd just opt for the full inspired set that has it all for £230. Wouldn't be too hard to strip the cranks and polish them up (Y)

Hey Justinlock,

My Inspired Crankset has just arrived... do you know if I can use caustic soda to strip the cranks? Will it affect the threads??? Or am I better to use a paint stripper? Sand papers etc...????

Share this post


Link to post
Share on other sites

caustic soda only effects aluminium, you'd need paint stripper to remove the paint, it won't effect any metal parts so no stress about the threads

1 person likes this

Share this post


Link to post
Share on other sites

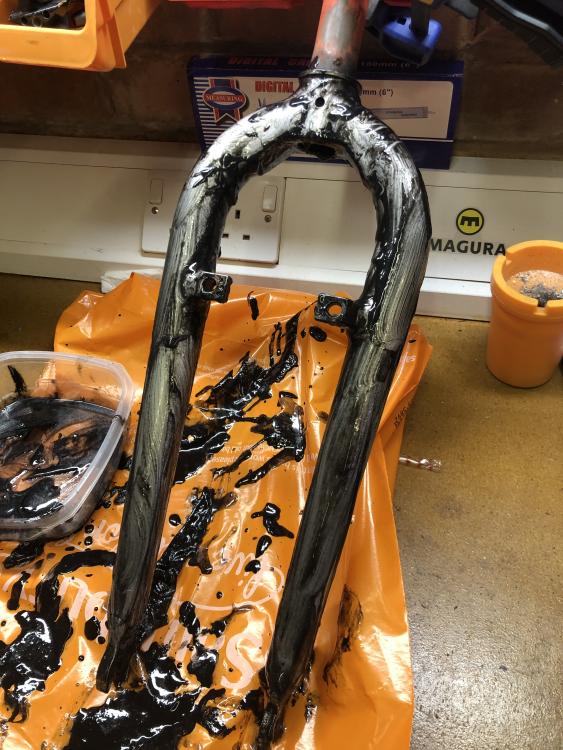

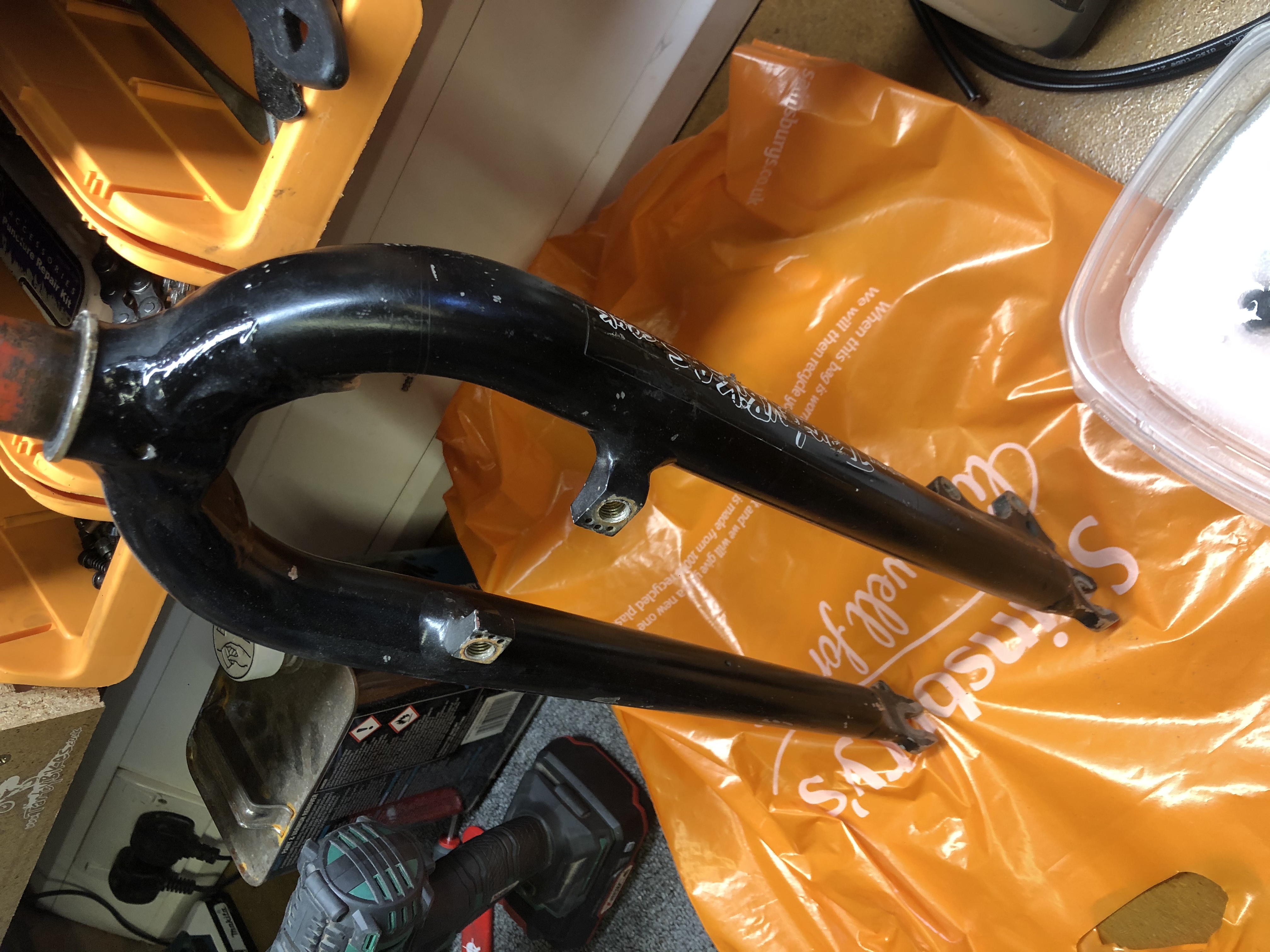

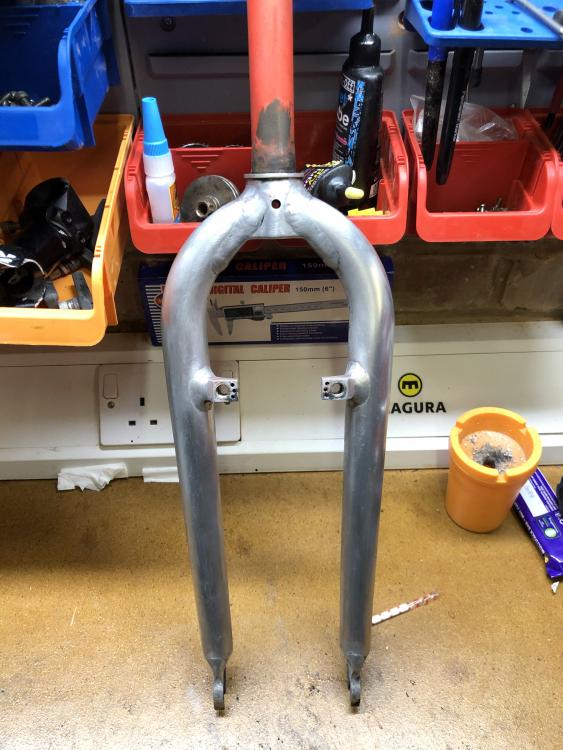

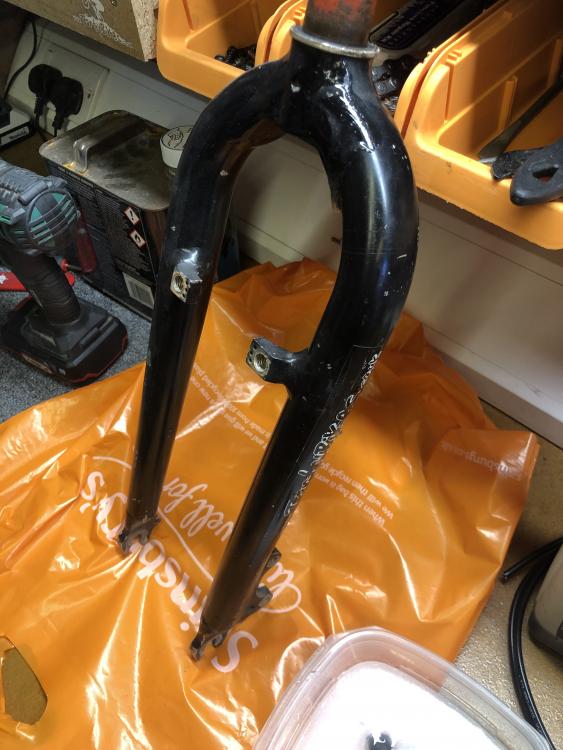

Nemesis paint stripper from screwfix has worked well for me, I’ve stripped the paint of some wheel rims and a set of forks:




2 people like this

Share this post


Link to post
Share on other sites
On 10/08/2020 at 5:54 PM, Ali C said:

caustic soda only effects aluminium, you'd need paint stripper to remove the paint, it won't effect any metal parts so no stress about the threads

Nice one Ali :)

Share this post


Link to post
Share on other sites
On 12/08/2020 at 5:46 AM, Private Repress said:

Nemesis paint stripper from screwfix has worked well for me, I’ve stripped the paint of some wheel rims and a set of forks:




Top Job ! :)

Share this post


Link to post
Share on other sites
