MK1 Fourplay brought back to life

8 posts in this topic

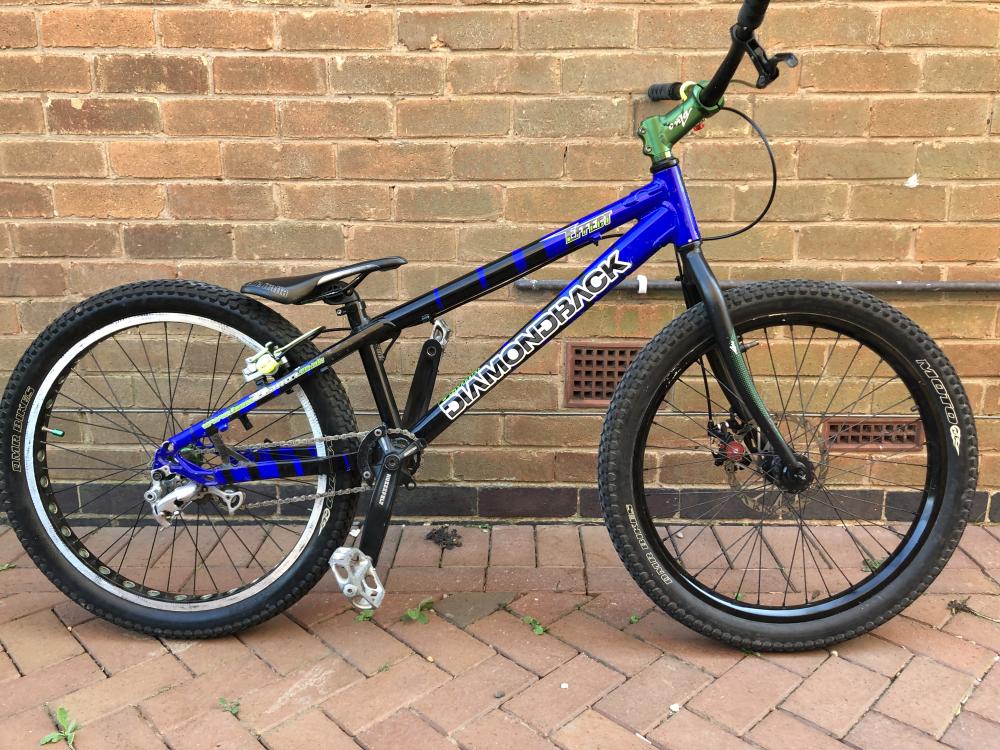

Having had a few bike builds on the go recently, I thought I’d sum up my spares and build a frankenbike... this is how it started:

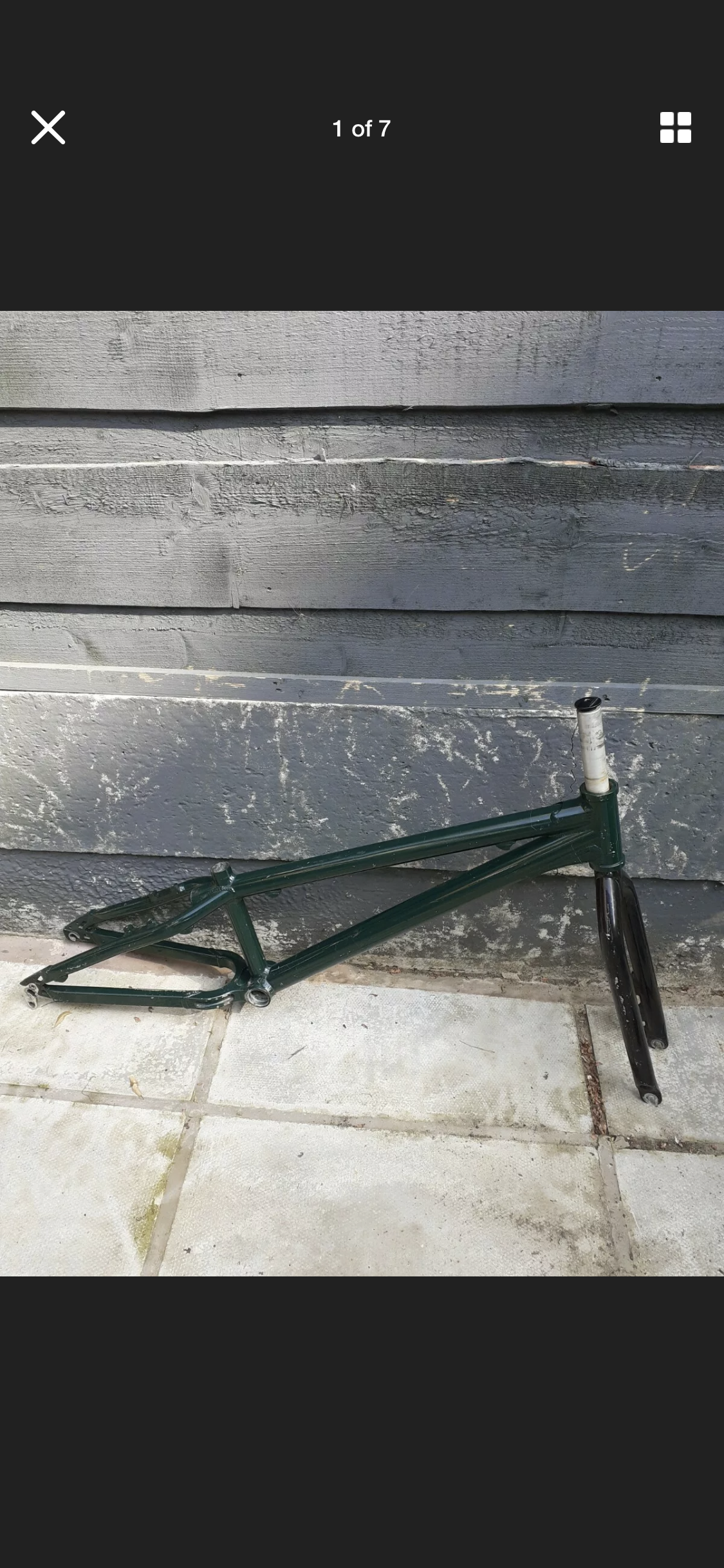

I was going to powder coat the frame, but half way through stripping it and whilst on the hunt for some straight blade forks I found this on eBay:



Thought I’d pick the forks and get rid of the frame... when it arrived I realised that made no sense. So the Frankenbike foundation is an Inspired MK1 Fourplay.


Next up, the brakes.

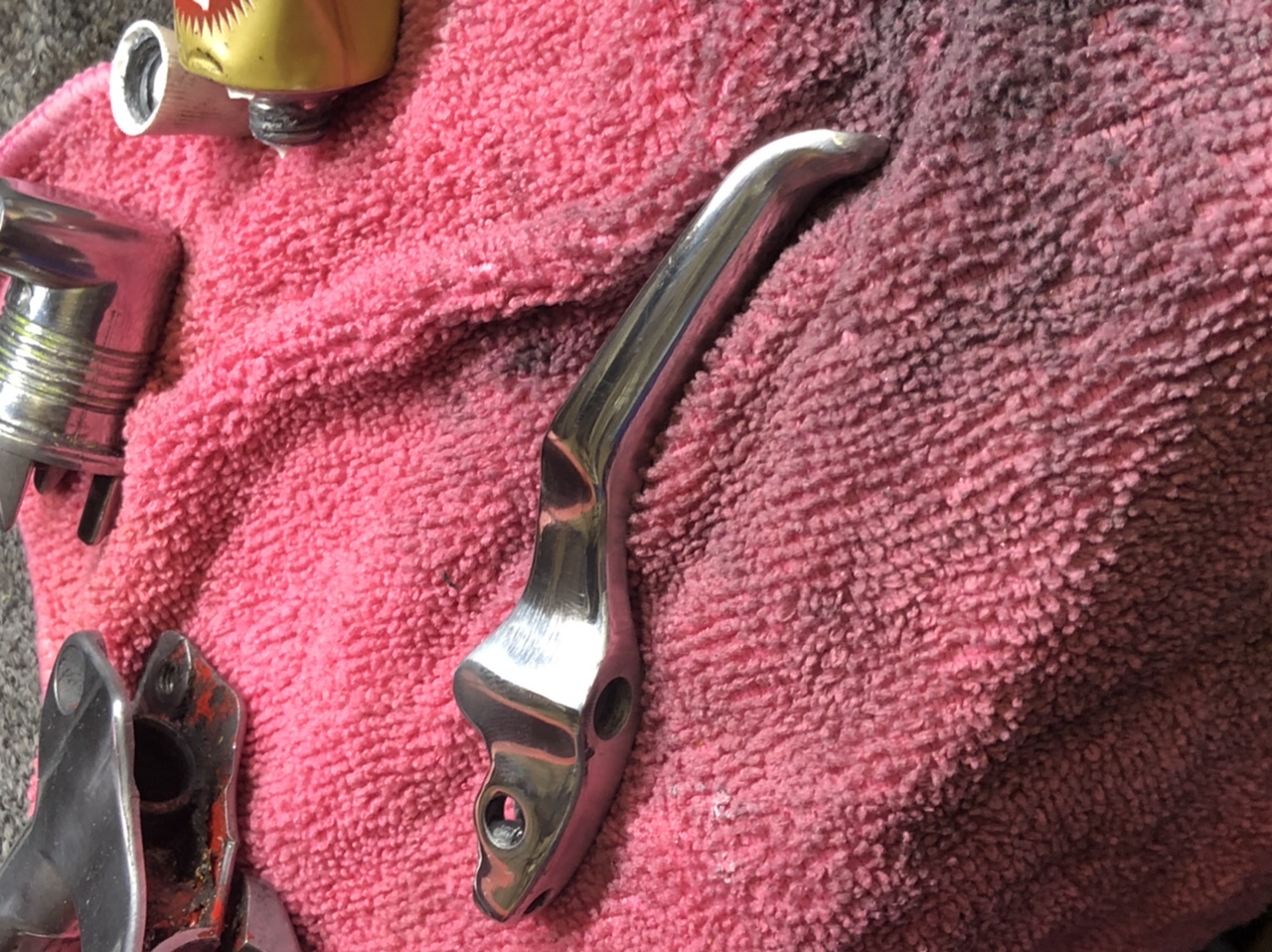

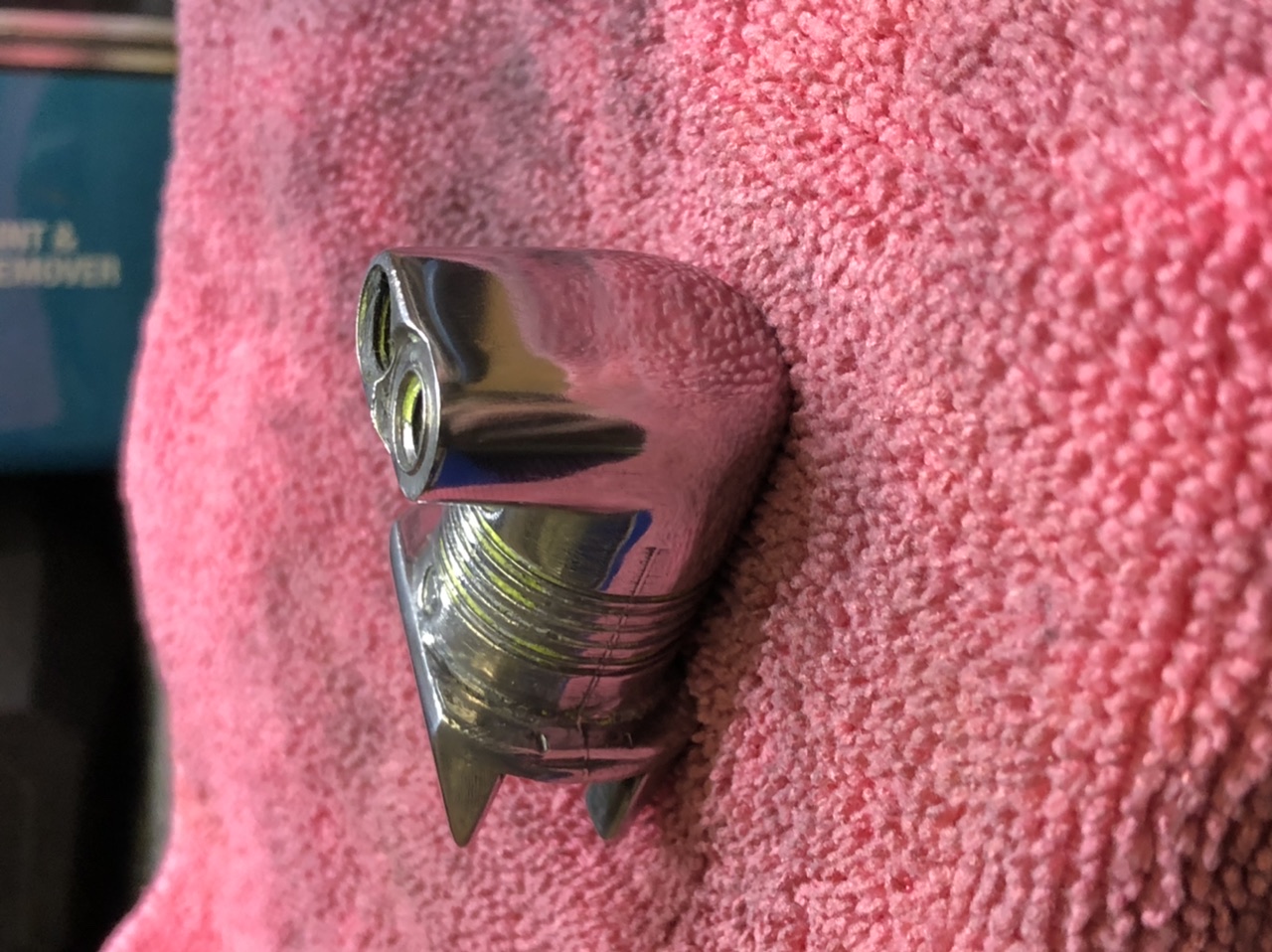

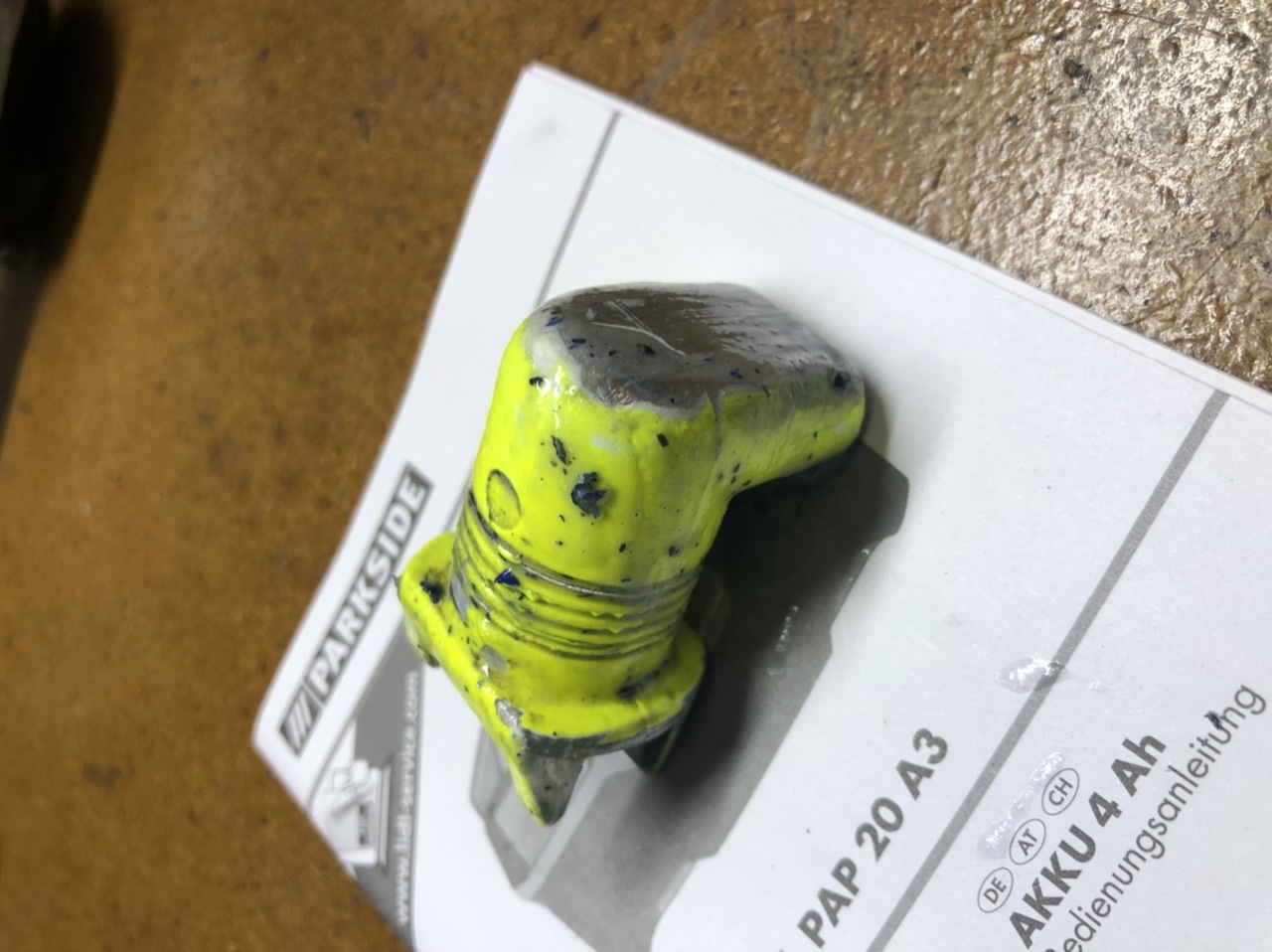

i have a few sets of maguras and spare bits kicking around and decided to put some effort in to polish them up:




I had a set of DMR DeeVees on hope pro 2 hubs from my old cracked zoot... so they went on too.


Edited by Private Repress

Share this post


Link to post
Share on other sites

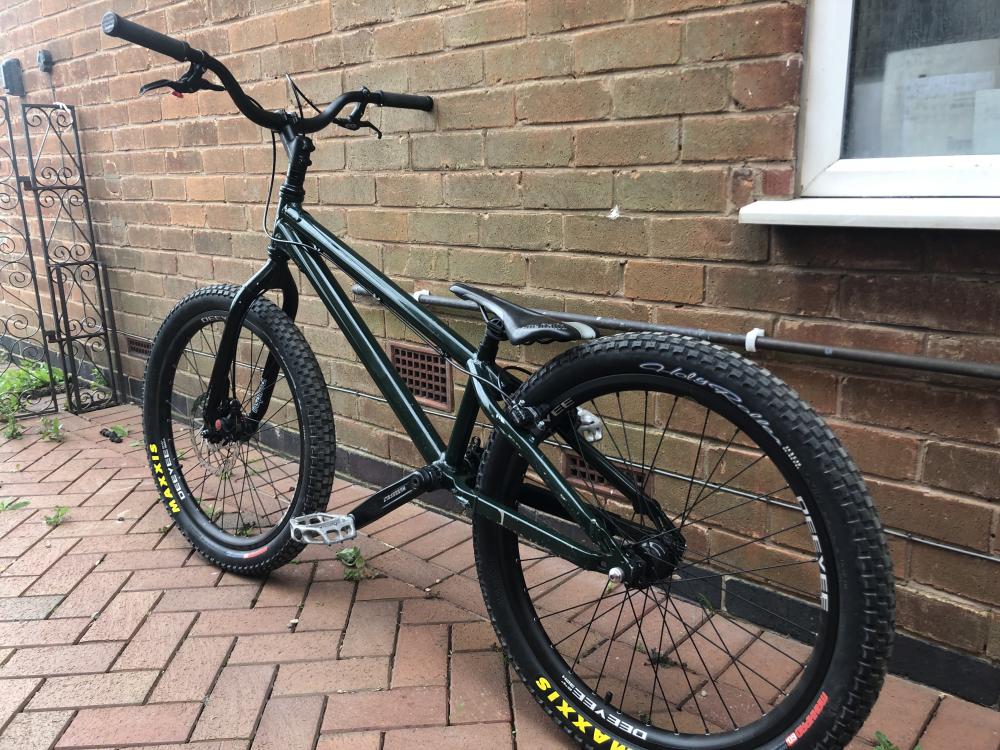

I had an 80x40 trial tech stem, but had to bite the bullet and get some new bars - went with the trusty inspired arcade risers.

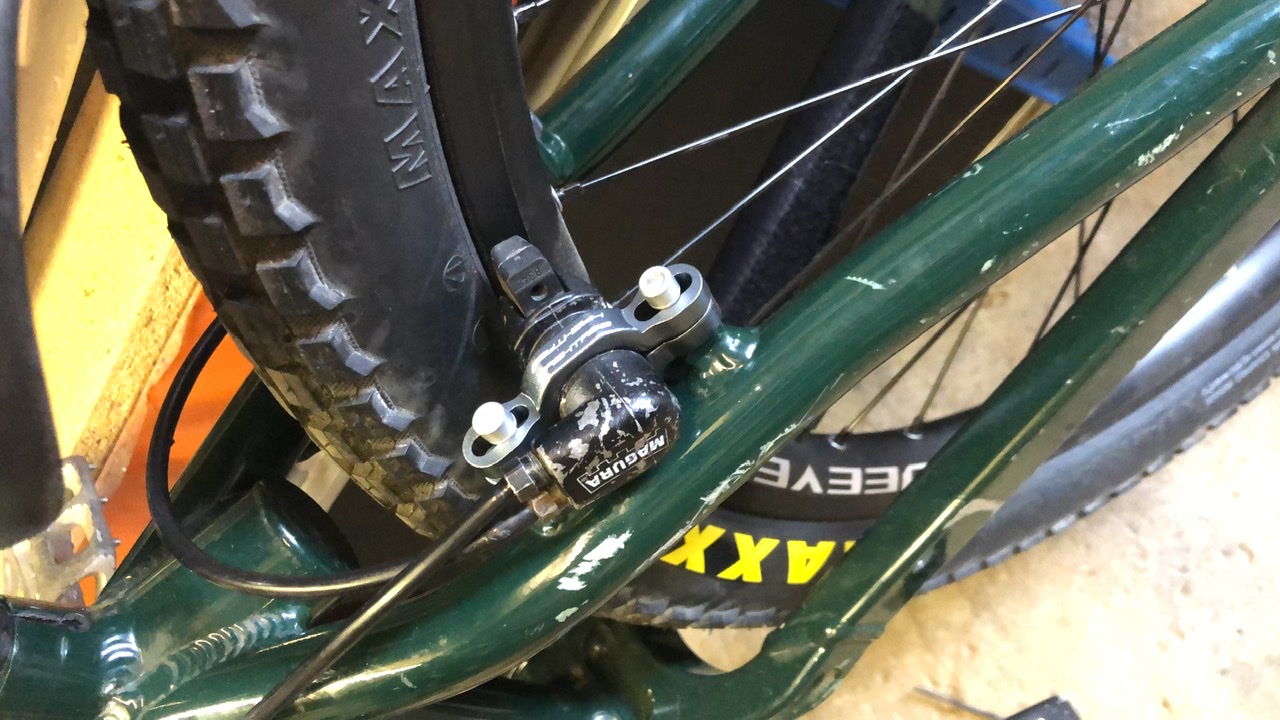

At this stage I had a bike that was rideable, and I it rides pretty well. Which got me thinking it needed a bit of a revamp... the paint on the frame is chipped and scratched (although looks okay in the photos) and I hadn’t finished polishing the magura bits, so was still running the black magura here which like the frame, worked perfectly but was tatty.



The seat also had to be changed!

Share this post


Link to post
Share on other sites

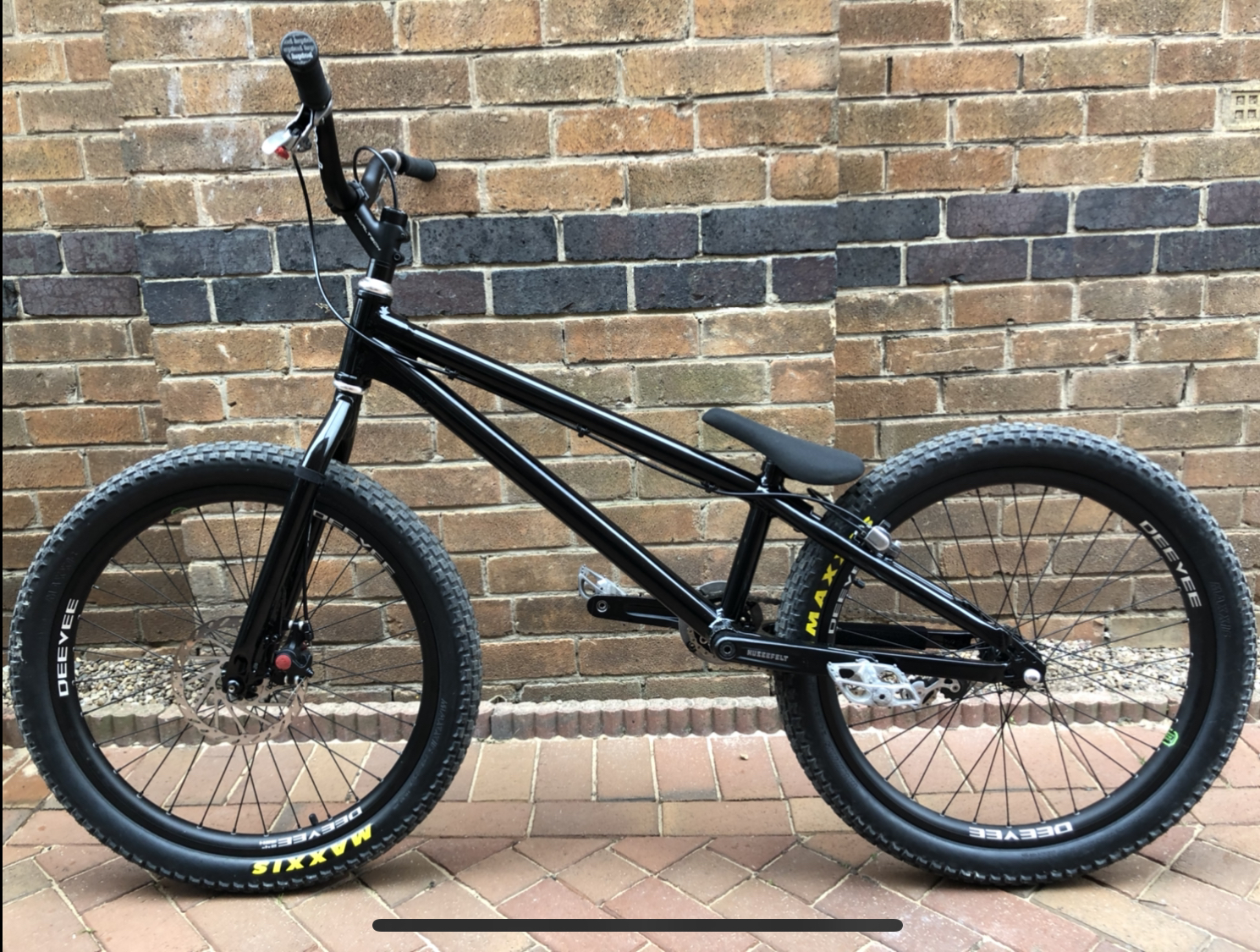

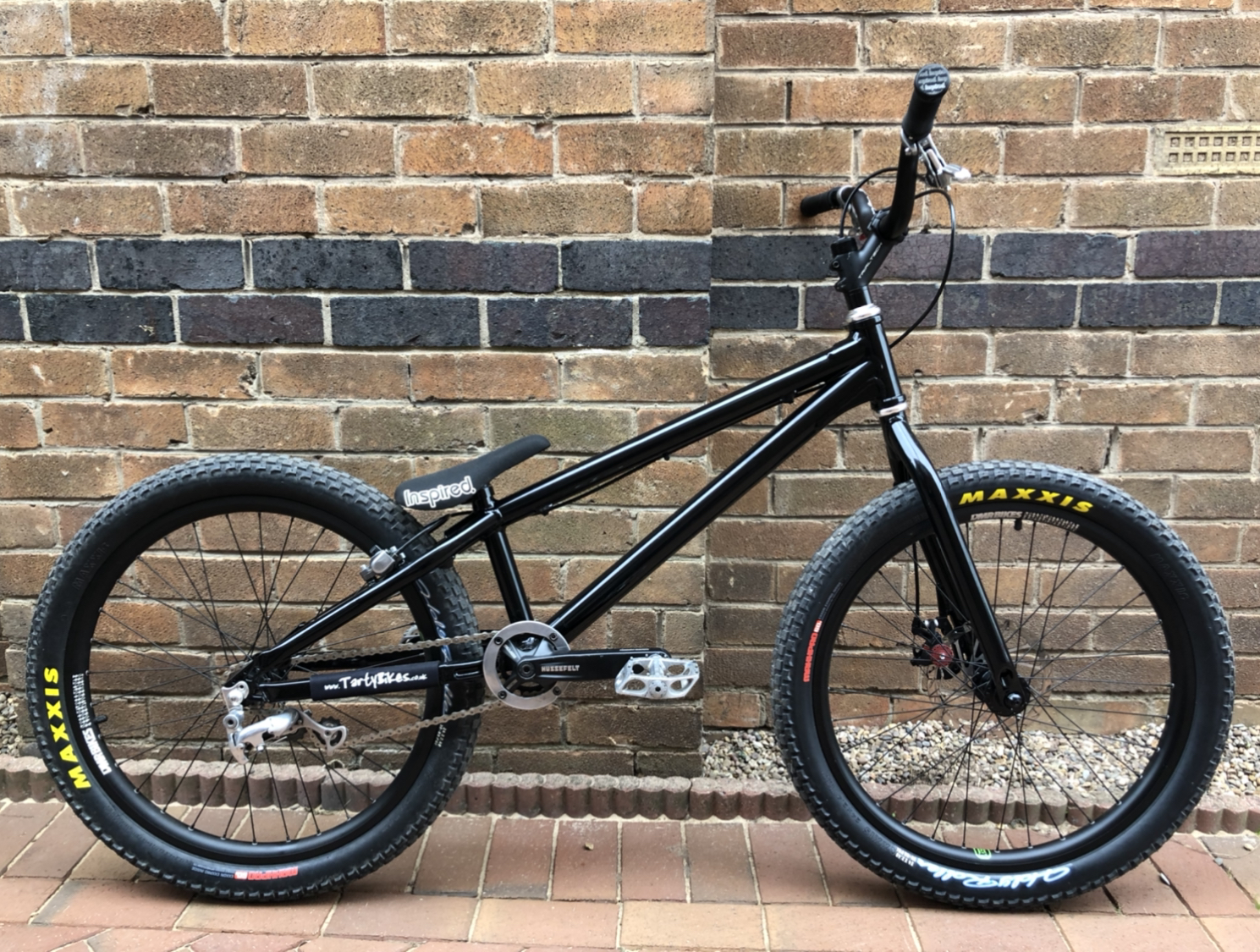

A trip to the spray shop, and a silver avid lever later... here it is now:





All that remains is a single speed chain tensioner which is on its way... from China

Edited by Private Repress
Typo
4 people like this

Share this post


Link to post
Share on other sites

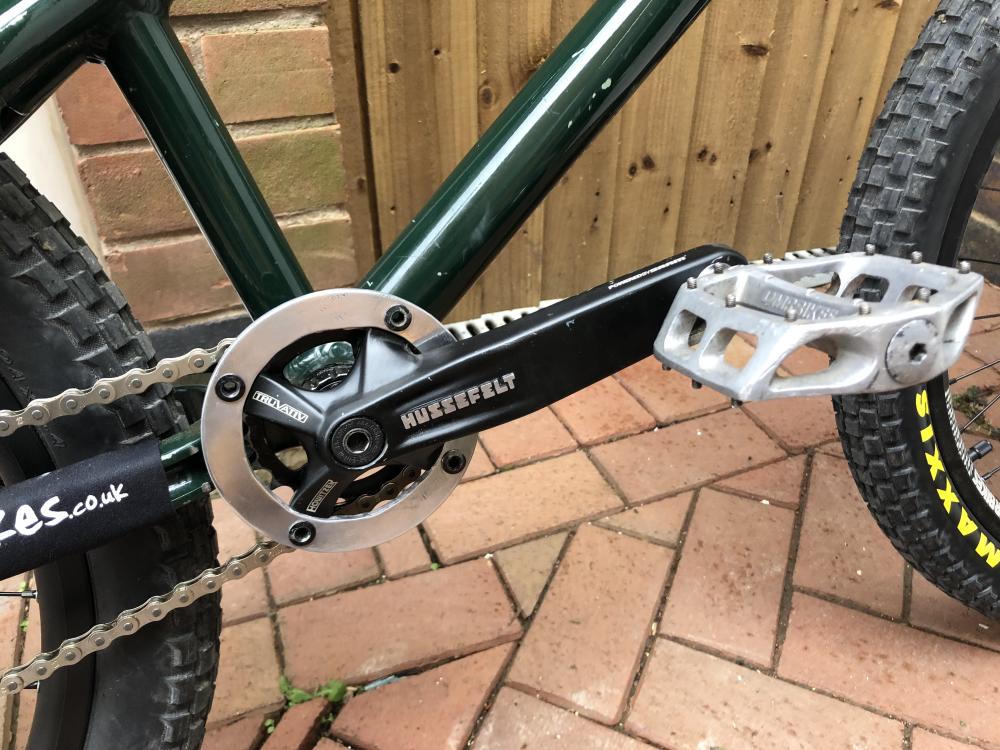

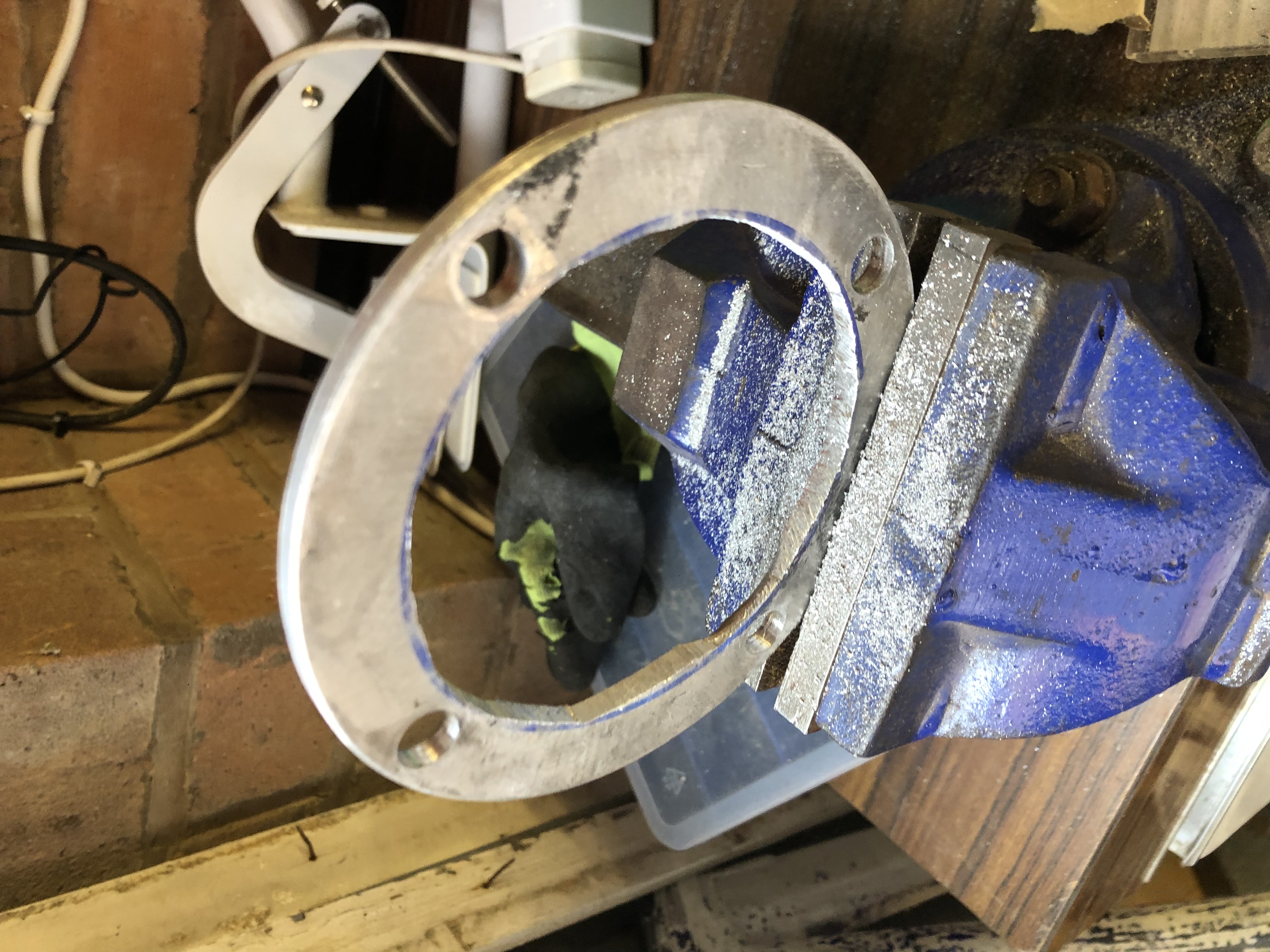

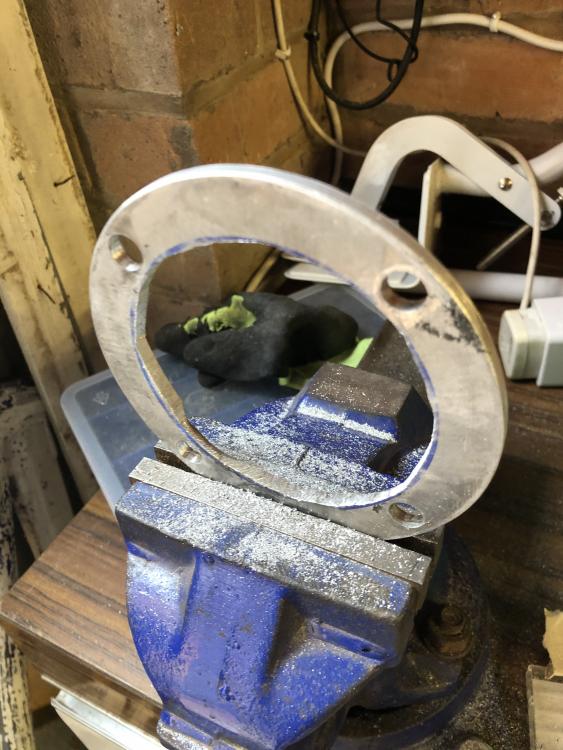

I forgot to add that I couldn’t find a a bash ring in silver that I liked, so made one, just need the inside smoothed out on a lathe to make it the perfect circle. Although the cranks May be swapped at a later date (they weigh a ton!). The bcd on these is massive too, so something a bit more compact but still 22t would be a nice to have.



Edited by Private Repress
Added content
1 person likes this

Share this post


Link to post
Share on other sites
20 hours ago, Private Repress said:

A trip to the spray shop, and a silver avid lever later... here it is now:

All that remains is a single speed chain tensioner which is on its way... from China

So nice dude. Good job.

1 person likes this

Share this post


Link to post
Share on other sites

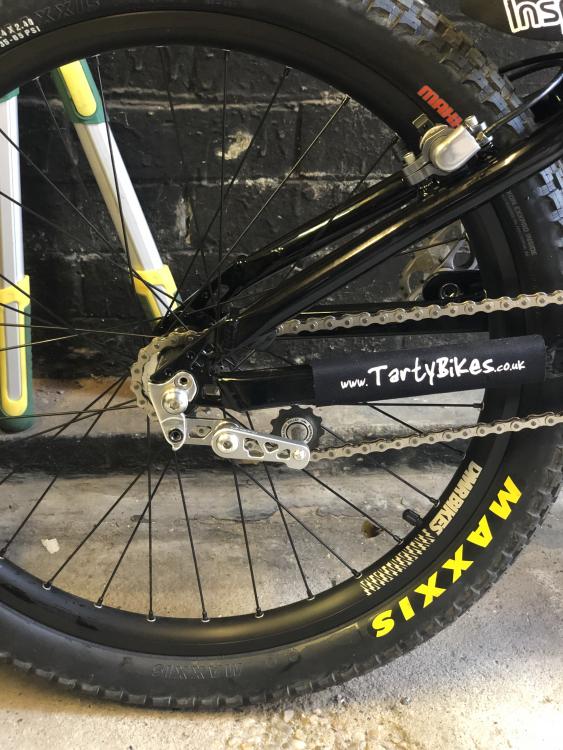

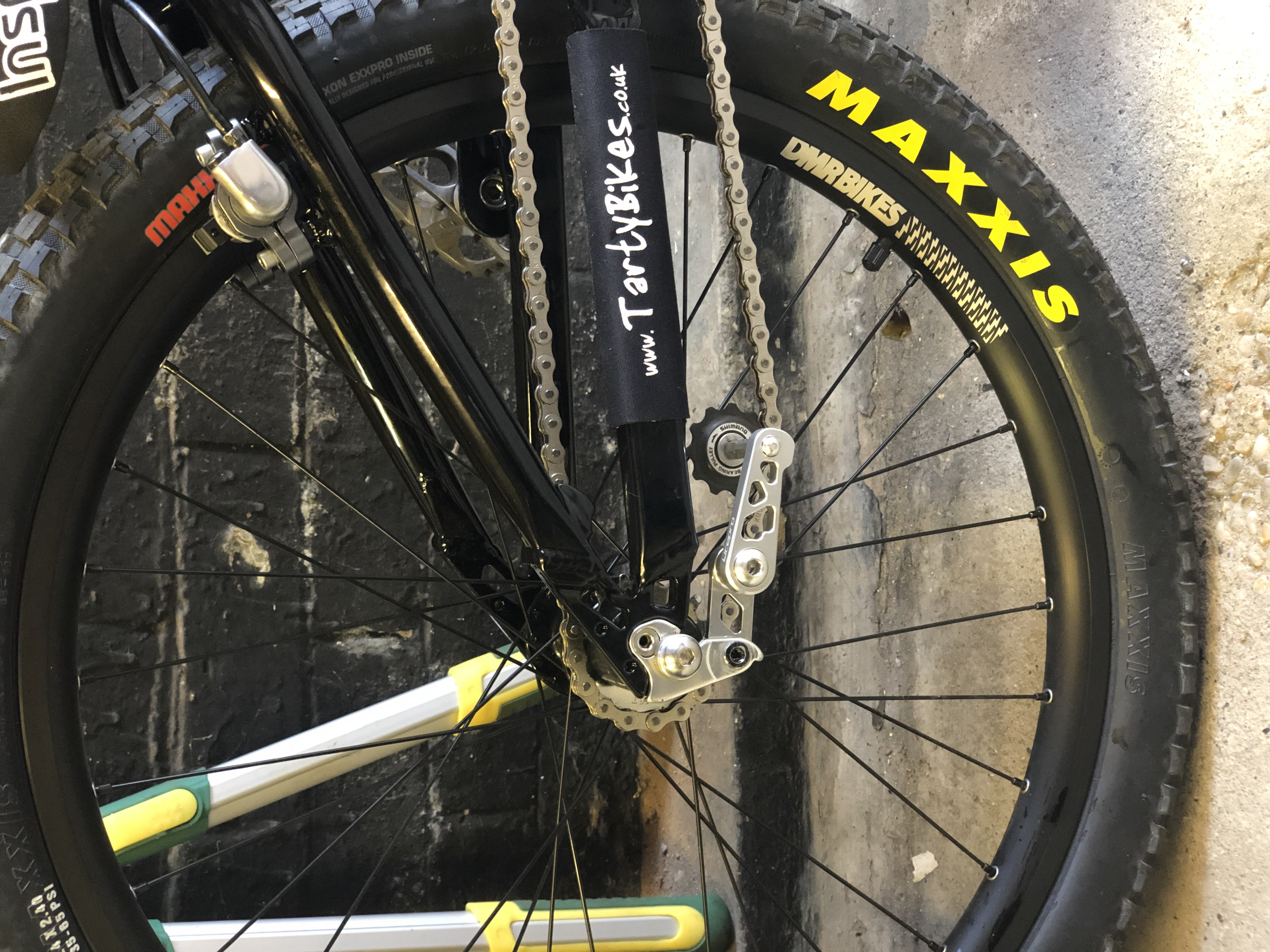

Chain tensioner arrived this morning, running it on the back side of the hanger seemed to be the only way to run it so that it fitted. I actually like it this way as less protrudes outwards. Also replaced the alloy jockey wheel with a plastic one as it runs way smoother and silently.





7 people like this

Share this post


Link to post
Share on other sites

I am usually not fond of this kind of bikes, but this is nice and far from a Frankenstein bike!

1 person likes this

Share this post


Link to post
Share on other sites
On 25/09/2020 at 3:32 PM, Canardweb said:

I am usually not fond of this kind of bikes, but this is nice and far from a Frankenstein bike!

Ah thanks man, was aiming for a 90s Bmx look with black and chrome. Agreed about the Frankenstein bike though, it started as a miss mash of parts and I gradually refined it after I realised it rides way nicer than expected

Edited by Private Repress

Share this post


Link to post
Share on other sites
