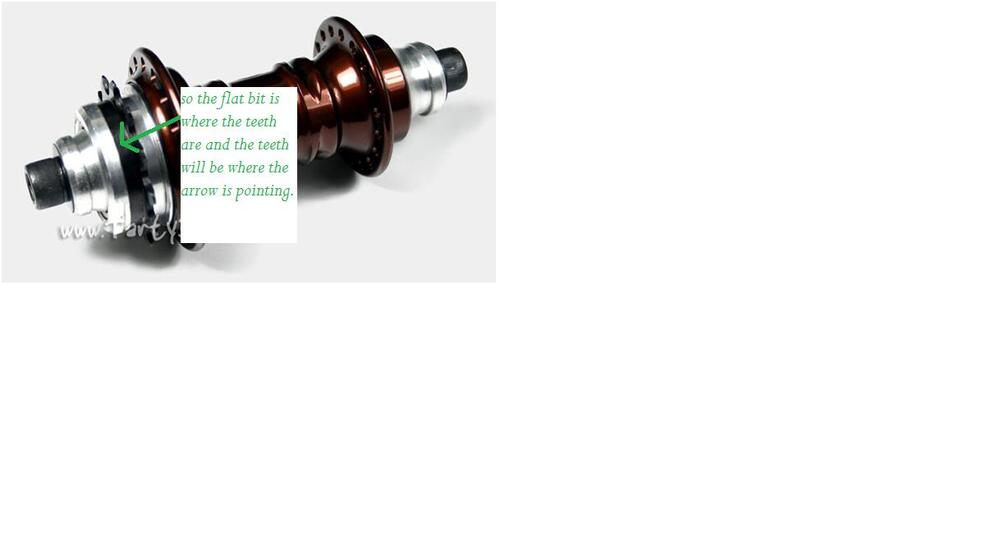

JohnBanks Posted August 13, 2008 Report Share Posted August 13, 2008 (edited) Hey,My front chain ring and my rear cog on my profile aren’t in line with each other making my chain not go on straight. Therefore making the chain creak when it goes round the chain is brand new and I am running gearing 18, 12. I was thinking can I swap the cog round so the teeth are on the outside and the smooth part is on the inside. Its hard to explain so I will draw a picture.So do you think i should try it and do u think it would work?Thanks,John Edited August 13, 2008 by JohnBanks Quote Link to comment Share on other sites More sharing options...
Ladd Posted August 13, 2008 Report Share Posted August 13, 2008 Dont do it mate.. its a mod it wil never line up dude. mine is well out off line Mike. Quote Link to comment Share on other sites More sharing options...
G-baby158 Posted August 13, 2008 Report Share Posted August 13, 2008 Try putting your chain on the other way, it might be upside down. Quote Link to comment Share on other sites More sharing options...
psycholist Posted August 13, 2008 Report Share Posted August 13, 2008 If the spline allows the sprocket to be flipped then it's definitely worth a try. Most chainline adjustments for singlespeed hubs are sorted by changing the BB axle length though... Quote Link to comment Share on other sites More sharing options...
cai Posted August 13, 2008 Report Share Posted August 13, 2008 Do it!It can't harm the hub in any way, as the lockring is still on the outside And if it helps your chain line and effectively your chain's life - its well worth it! Quote Link to comment Share on other sites More sharing options...
padarik Posted August 14, 2008 Report Share Posted August 14, 2008 i tryed this awhile ago.... chain hit my snail cams, so it may hit your cams / frame , what cranks are you runnin? could think about putin a few 1m bb spacers on it if its a ffw crank? Quote Link to comment Share on other sites More sharing options...
JohnBanks Posted August 14, 2008 Author Report Share Posted August 14, 2008 Im running tensile with a front sprket and a ko-bikes bb, im not running any snail cams or chain tugs.i have also tried the chain both ways and it still continus to happen. Quote Link to comment Share on other sites More sharing options...
eskimo Posted August 14, 2008 Report Share Posted August 14, 2008 (edited) So your chain alignment isn't straight? That's the problem?This will cause the chain to have uneven stress on one side and will probably snap soon. The Ko BB is 127.5mm in length yeah? Get a 122.5mm axle bottom bracket, that should give enough room for a freewheel and bring your chain in line. I used to run a FSA Platinum BB with my Profile a few years ago and that was fine. Although i can't remember the length but it was with an Eno and bash ring. I dunno if you could go to 118 or not, i think that would be verrrrrrrry close if it did fit.[edit]Oh, once you've sorted it, do yourself a favour and buy a brand new chain! Edited August 14, 2008 by eskimo Quote Link to comment Share on other sites More sharing options...
Mark W Posted August 14, 2008 Report Share Posted August 14, 2008 I'd be pretty amazed if you could get a FFW setup to work with a 118mm BB spindle. Apart from a Dicta on a pretty fresh pair of Muscleman cranks (So they didn't sit too far onto the BB tapers), I couldn't get anything to work on a 122mm BB spindle either. It's only ever been 127.5mm square taper or 128mm ISIS BBs that have worked out for me. Quote Link to comment Share on other sites More sharing options...
Muel Posted August 14, 2008 Report Share Posted August 14, 2008 I had Echo Forged cranks wth a Tensile on a 122, but I had to grind the crank down a bit so the freewheel would screw on without the spacer. Theres a plain bit after the thread, so I didn't grind any of the thread off.I'm now running a Monty TI bb and cranks, both Isis, with a Tensile ffw, an atomz bashring and about 4mm of space. Nice. Quote Link to comment Share on other sites More sharing options...
JohnBanks Posted August 14, 2008 Author Report Share Posted August 14, 2008 (edited) Im not running front freewheeland the chain is brand spakin new and never been usedso you reckon i should swap the cod around on my profile and will this affect the profilein anyway Edited August 14, 2008 by JohnBanks Quote Link to comment Share on other sites More sharing options...
JonMack Posted August 14, 2008 Report Share Posted August 14, 2008 I'd be pretty amazed if you could get a FFW setup to work with a 118mm BB spindle. Apart from a Dicta on a pretty fresh pair of Muscleman cranks (So they didn't sit too far onto the BB tapers), I couldn't get anything to work on a 122mm BB spindle either. It's only ever been 127.5mm square taper or 128mm ISIS BBs that have worked out for me.The thread is about a Profile though Mark Quote Link to comment Share on other sites More sharing options...
JohnBanks Posted August 14, 2008 Author Report Share Posted August 14, 2008 The thread is about a Profile though Mark Yea so you think i shoud chainge the cog round on the profile to get a cupple of mm better Quote Link to comment Share on other sites More sharing options...
Mark W Posted August 14, 2008 Report Share Posted August 14, 2008 The thread is about a Profile though Mark Sure is, I was more talking about BB lengths in relation to:So your chain alignment isn't straight? That's the problem?This will cause the chain to have uneven stress on one side and will probably snap soon. The Ko BB is 127.5mm in length yeah? Get a 122.5mm axle bottom bracket, that should give enough room for a freewheel and bring your chain in line. I used to run a FSA Platinum BB with my Profile a few years ago and that was fine. Although i can't remember the length but it was with an Eno and bash ring. I dunno if you could go to 118 or not, i think that would be verrrrrrrry close if it did fit.[edit]Oh, once you've sorted it, do yourself a favour and buy a brand new chain! Quote Link to comment Share on other sites More sharing options...
eskimo Posted August 15, 2008 Report Share Posted August 15, 2008 f**k knows where i was at right then.Best sort that out. I had a short 122.5mm FSA Plat bb with my Profile, that sorted out the chainline fine. But i honestly don't know why i brought the Eno into it. Your guess is as good as mine.But the follow up would be, measure how much further in you need the sprocket (minus) that off 127.5 and you should get your bb length that you need.I can't remember the Profile sprocket setup, but if changing the cog round doesn't interfere with the lock ring then you should be okay. But unless your change is pretty much straight your going to get issues. Quote Link to comment Share on other sites More sharing options...
JohnBanks Posted August 15, 2008 Author Report Share Posted August 15, 2008 So... my chain is out of line quit badlyMy options: New bbThe cog thingAny others ??????????? Quote Link to comment Share on other sites More sharing options...
eskimo Posted August 16, 2008 Report Share Posted August 16, 2008 It's been days since you encountered the problem, why haven't you tried it? It only requires removing the lock ring...Then go from there. Quote Link to comment Share on other sites More sharing options...
JohnBanks Posted August 17, 2008 Author Report Share Posted August 17, 2008 (edited) It's been days since you encountered the problem, why haven't you tried it? It only requires removing the lock ring...Then go from there.Long story, I ordered the frame, bb, headset, chain and forks from trials-uk a couple of days before i went on a week’s holiday expecting them to be there when I got back. They weren’t, so looked at my e-mails and there wasn’t one...so I sent an e-mail wondering where my order was and they said it was on its way and should be there for tomorrow. it also said the forks where out of stock but there hadn’t been an e-mail telling me this before I e-mailed them when i got back . So I sorted it all that out with them and the forks still haven’t arrived so can’t build my bike up fully or ride it so just wanted to see what people had to say about my problem, before the forks arrived and according to Mike D you can’t actually change the cog around because of a lip on the cog itself so I wanted to see what other options I had.Cheers,John Edited August 17, 2008 by JohnBanks Quote Link to comment Share on other sites More sharing options...
jsy trials matt Posted August 17, 2008 Report Share Posted August 17, 2008 (edited) So... my chain is out of line quit badlyMy options: New bbThe cog thingAny others ???????????chain tugg's/snail camsmaybe even spacers on the sides, give it a go Edited August 17, 2008 by jsy trials matt Quote Link to comment Share on other sites More sharing options...
JohnBanks Posted August 17, 2008 Author Report Share Posted August 17, 2008 Right tis all sorted now Thanks allot everyone for your helpThanks,John Quote Link to comment Share on other sites More sharing options...
eskimo Posted August 18, 2008 Report Share Posted August 18, 2008 Ah i see, i thought there might be more to the hub.Have you got all your parts now? Quote Link to comment Share on other sites More sharing options...
JohnBanks Posted August 18, 2008 Author Report Share Posted August 18, 2008 NO Its realy gettin anoying all i want to do is ride my parts always seem to take forever to come Quote Link to comment Share on other sites More sharing options...
eskimo Posted August 18, 2008 Report Share Posted August 18, 2008 Try and get some compensation, eg. free tubes/ discount/ free postage etc. Quote Link to comment Share on other sites More sharing options...
JohnBanks Posted August 18, 2008 Author Report Share Posted August 18, 2008 Yea i did get some compensation got some better forks lol and free postage makes up for it i supose Quote Link to comment Share on other sites More sharing options...
eskimo Posted August 20, 2008 Report Share Posted August 20, 2008 Ah, cool. Quote Link to comment Share on other sites More sharing options...
