Ross McArthur

Archive XL

9 posts in this topic

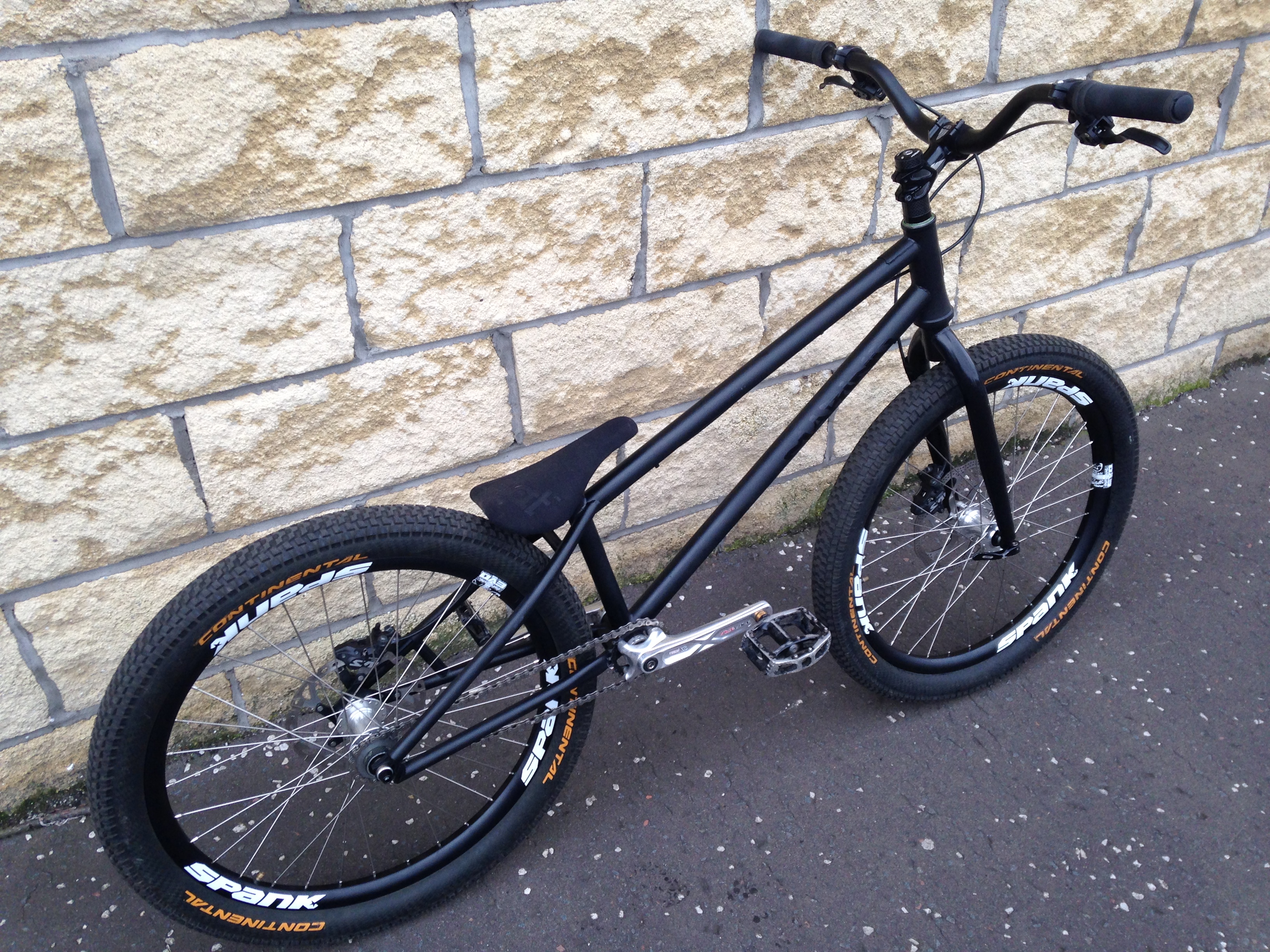

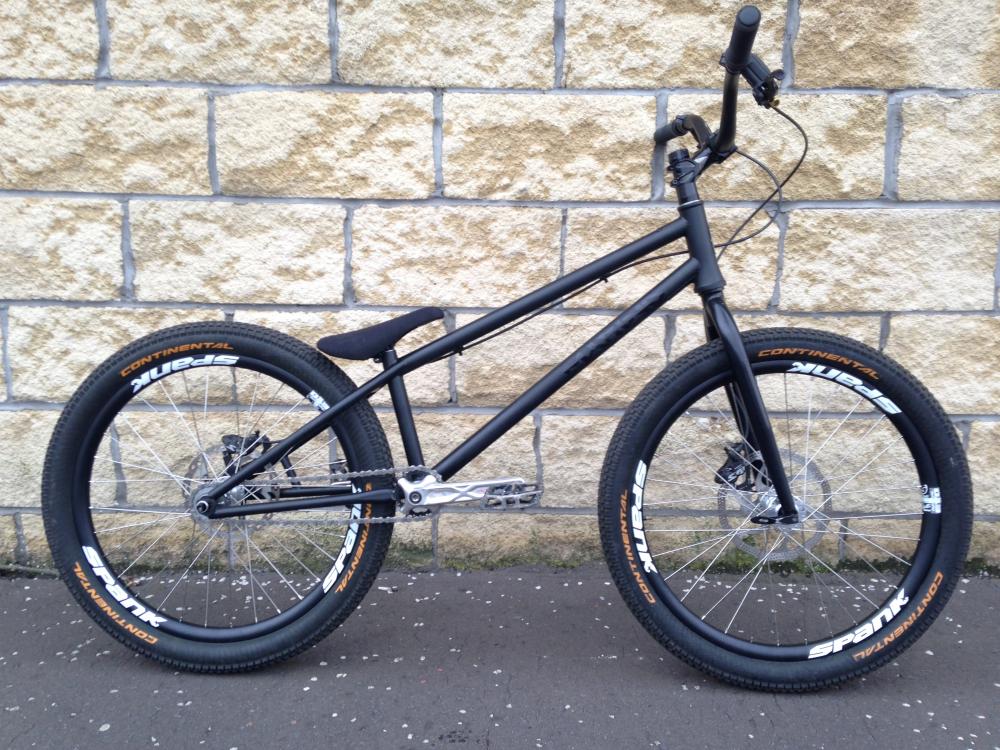

Updated geo. Tapered headtube. Wider bb allowing for bigger tyres. Shorter dropouts.

I've still to come up with a bash arrangement. Still on the drawing board at the moment.







Edited by Ross McArthur
5 people like this

Share this post


Link to post
Share on other sites

Looks good, matte forks though.

Share this post


Link to post
Share on other sites

Possibly a change for the future.

Its still not 100% as I want it. Waiting on my 15mm end caps for my front hub to get the Ti bolts on. Going down to 180mm ice tech disc on the front. Chop steerer.

The eagle eye will have noticed the lack of top plate on the head set. Miss-placed but works as is for now. Once fitted it'll mean there will only be 20mm of spacers on there. :)

Share this post


Link to post
Share on other sites

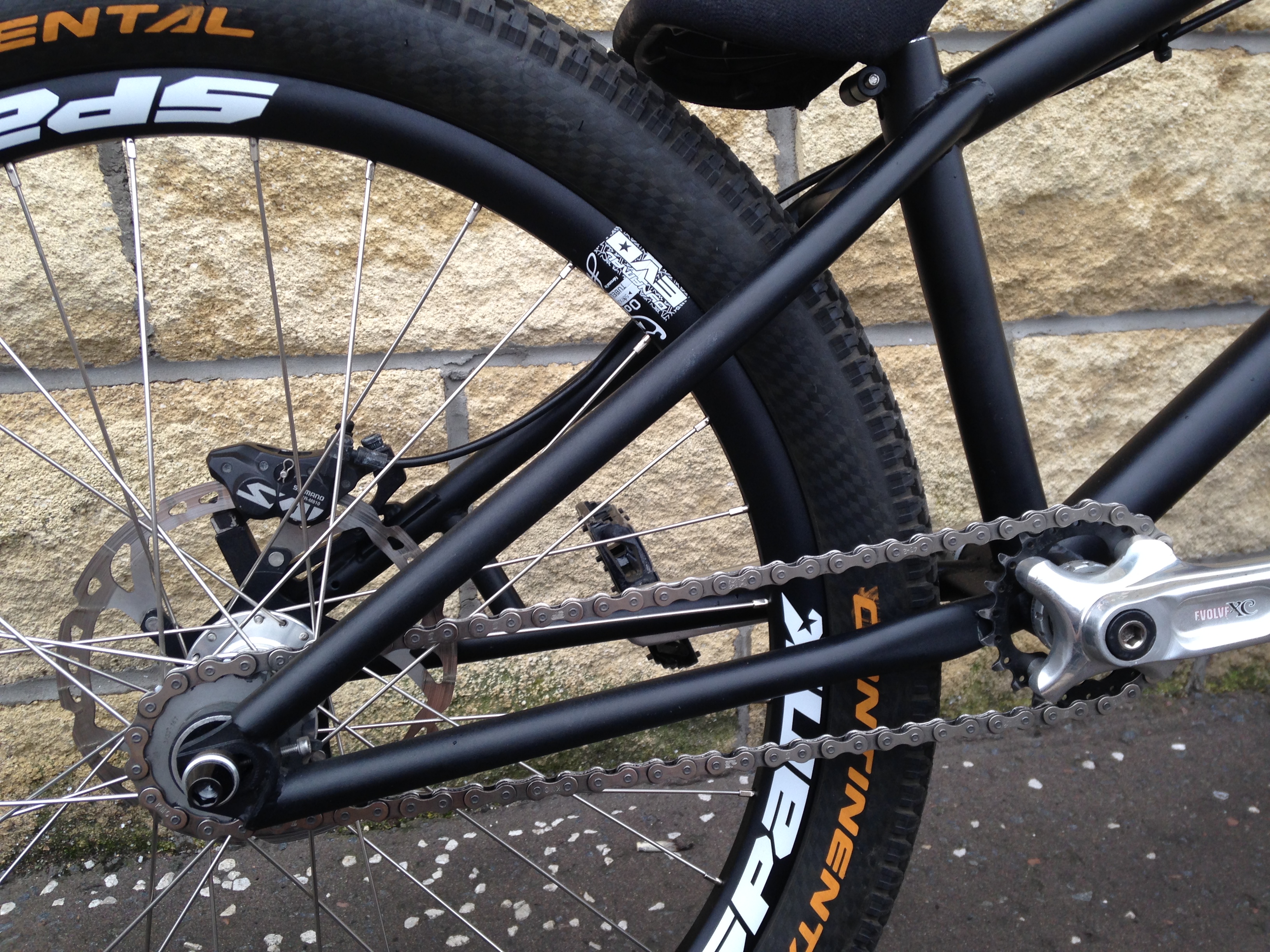

Does the chainring rub at the chain stay?

1 person likes this

Share this post


Link to post
Share on other sites
10 hours ago, niconj said:

Does the chainring rub at the chain stay?

It did. Not any more.

Share this post


Link to post
Share on other sites

What widths the bb shell Ross?

Share this post


Link to post
Share on other sites

Mines really close.

Share this post


Link to post
Share on other sites
1 hour ago, porn* said:

What widths the bb shell Ross?

I went with a 73mm BB shell this time so as to give a massive tyre clearance for the big Conti D Macs so there was a bit of come and go if the tyre had a bobble in it...which it doesn't so its all good.

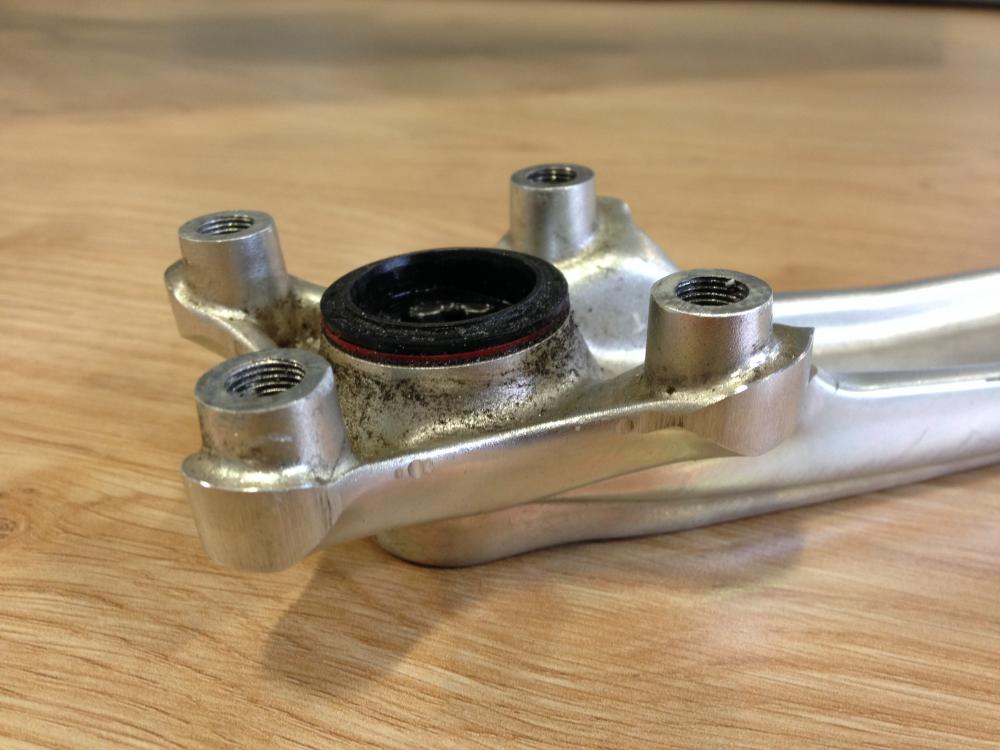

The bigger shell obviously means less chain ring clearance but I sorted that by having my granny ring tabs machined down by a couple of mm. Jobs a good'un. (Y)


Edited by Ross McArthur
