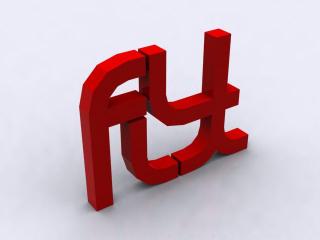

br3n Posted January 28, 2008 Report Share Posted January 28, 2008 I'm having some issues importing from autocad into 3dsm - the problem is that somewhere between the two programs the curves get lost and turned into straight lines, heres what I mean... (attached)Does anyone know how to stop this happening?(I'm using autocad 2008 and 3dsm 8 - im getting an object enabler error with cad and told to go to autodesk.com/oe but I still cant see anything for 2008, because max8 is old im saving as 2004 autocad file and importing that... im lost )Thanks in advance for help. Quote Link to comment Share on other sites More sharing options...
James Quigley Posted January 28, 2008 Report Share Posted January 28, 2008 Which direction are you going? AutoCAD into 3ds or 3ds into AutoCAD?I use AutoCAD more than 3ds and my curves do that, but just regenerating the drawing works.Your problem probably isn't as simple as that though, plus looking at some of your stuff you're more adept at it than me anywho. Quote Link to comment Share on other sites More sharing options...
br3n Posted January 28, 2008 Author Report Share Posted January 28, 2008 Im going from autocad (2008) to max8... but its not that simple..Becasue (I think) my version of cad outdates my version of 3dsm Im having to save the cad file as a 2004 cad file and then using max import it. When I do this I get an object enabler error which i can continue without (which gives me that form)I know in autocad you can change the number of points in a curve for display.. I always assumed as its vector based that was just a representation and not any part of the actual form which is curve.I know a fair amount about autocad but next to nothing about 3dsm so im lost inbetween them at the mo. Quote Link to comment Share on other sites More sharing options...
James Quigley Posted January 28, 2008 Report Share Posted January 28, 2008 I cant help you then, lolOnly really started looking into 3ds max in the last coulpe o weeks. Quote Link to comment Share on other sites More sharing options...
monkeyseemonkeydo Posted January 28, 2008 Report Share Posted January 28, 2008 Is there no way of changing the tolerances of the exported AutoCAD file? And have you tried exporting as a different format and importing it back into 3dsm? Just stabs in the dark by the way 'cos I'm used to messing about between CAD systems but not the ones in question. Quote Link to comment Share on other sites More sharing options...

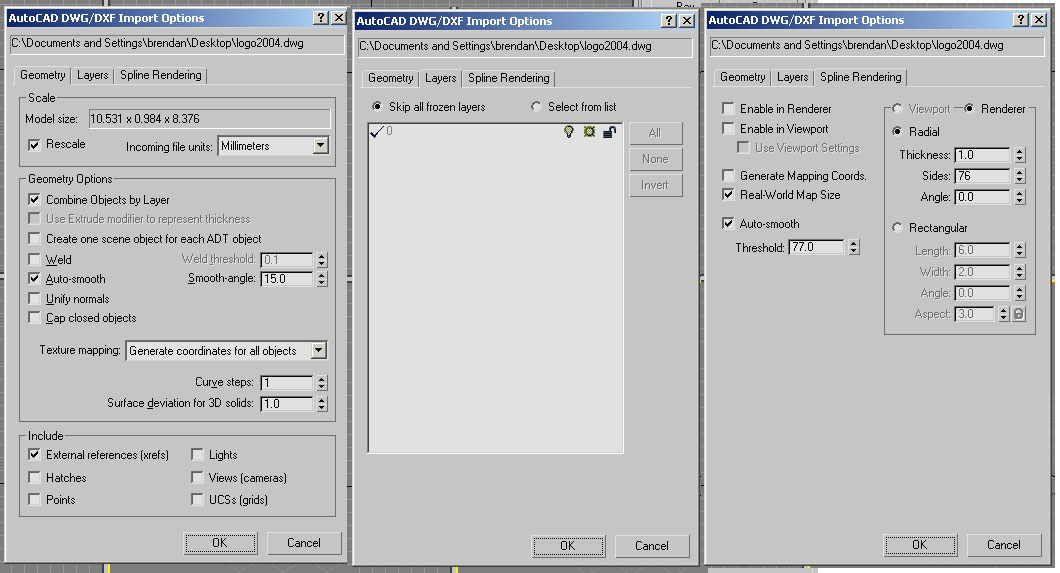

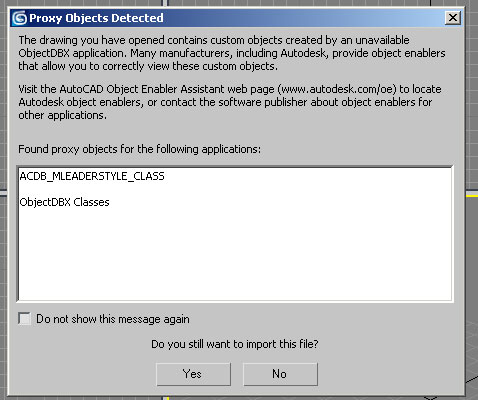

br3n Posted January 28, 2008 Author Report Share Posted January 28, 2008 screenshot 1 = object enabler error when importing a 2004 filescreenshot 2 = having clicked continue anyway - the improt menu (all 3 tabs) Quote Link to comment Share on other sites More sharing options...
James Quigley Posted January 28, 2008 Report Share Posted January 28, 2008 surely that second screenshot tells you how to sort it, go to the Autodesk site and get the object enablers or whatever.Have you tried exporting the AutoCAD file as a DXF rather than a DWG? Quote Link to comment Share on other sites More sharing options...
br3n Posted January 28, 2008 Author Report Share Posted January 28, 2008 been on the site and downloaded all the things I can see that would be of any possible use, the problem is autocad 2008 has the enabler, but im saving as 2004 :/ Quote Link to comment Share on other sites More sharing options...
monkeyseemonkeydo Posted January 29, 2008 Report Share Posted January 29, 2008 Other than fixing the object error, have you tried fiddling the 'smooth angle' and 'surface deviation for 3d solids' in the geometry tab and maybe the auto-smooth threshold in the spline rendering tab? Quote Link to comment Share on other sites More sharing options...
poopipe Posted January 29, 2008 Report Share Posted January 29, 2008 It's converting the splines to polylinesin Max. select the spline, go to the modify panel and increase the interpolation value. If that doesn't sort it immediately you'll need to set curve values on each vertex manually. if you get confused pm me - if you get really confused mail me the file and i'll sort it Quote Link to comment Share on other sites More sharing options...
br3n Posted January 29, 2008 Author Report Share Posted January 29, 2008 (edited) It's converting the splines to polylinesin Max. select the spline, go to the modify panel and increase the interpolation value. If that doesn't sort it immediately you'll need to set curve values on each vertex manually. if you get confused pm me - if you get really confused mail me the file and i'll sort it excellent, words which I think make sense! at college now so will have a go when i get home, expect a pm later though! hah... (thanks xxx)(by the way, in cad.. to extrude a shape they have to be polylines, so before they were extruded (solid) they are polylines... I dont know if that changes anything) Edited January 29, 2008 by br3n Quote Link to comment Share on other sites More sharing options...
