Oli P Posted February 28, 2010 Report Share Posted February 28, 2010 I am going to build a new front wheel but I am not sure what spoke pattern to go for. I am running a BB7 so it needs to be strong but looking at the wheels on Tarty they have a 3 cross disk side and straight on the other side and was woundering if it is strong enough. I would like to have it as light as possible but without giving up any rigidity. What do people think is the best pattern? Quote Link to comment Share on other sites More sharing options...
Mark W Posted February 28, 2010 Report Share Posted February 28, 2010 If you want a strong wheel, then 3x disc/2x non-disc would probably be a pretty good balance. Other than that, 3x or 2x disc side and radial non-disc should be fine, really. Almost all the wheels with build and spoke we provide lengths for are for that kind of setup, and we've not had any complaints. I know on my bikes I've got 2x or 3x disc, radial non-disc, and it's the same for Adam, Stan and Ali too. Quote Link to comment Share on other sites More sharing options...

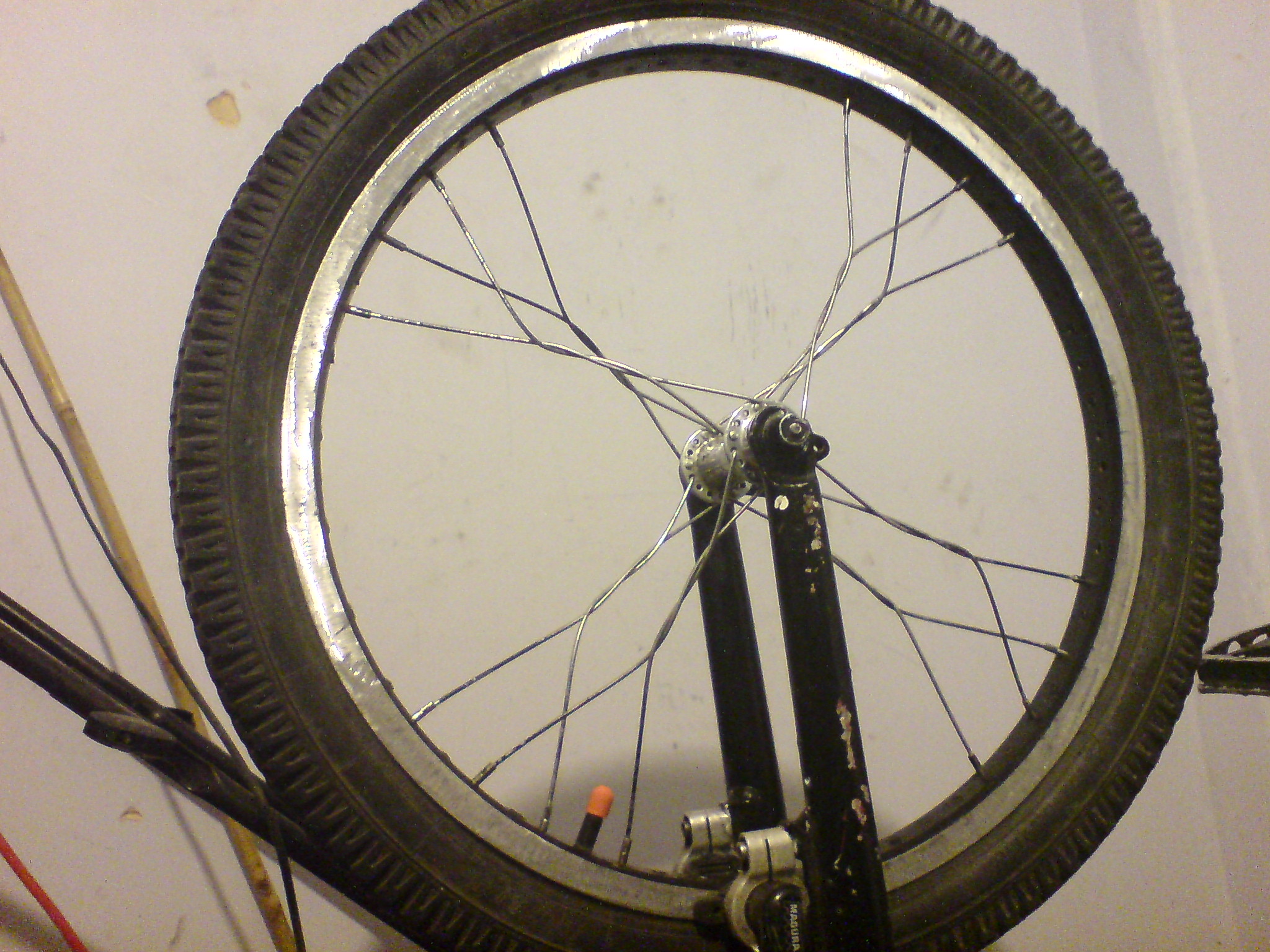

TROYston Posted February 28, 2010 Report Share Posted February 28, 2010 (edited) Minimal snowflake! Done by me . Edited February 28, 2010 by TROYston Quote Link to comment Share on other sites More sharing options...
Revolver Posted February 28, 2010 Report Share Posted February 28, 2010 Done by me . Quote Link to comment Share on other sites More sharing options...
Borat Posted February 28, 2010 Report Share Posted February 28, 2010 Minimal snowflake! Done by me . I DAREZZZ YOU TO RUN FRONT DISK! (new font hub though) Quote Link to comment Share on other sites More sharing options...
Oli P Posted February 28, 2010 Author Report Share Posted February 28, 2010 If you want a strong wheel, then 3x disc/2x non-disc would probably be a pretty good balance. Other than that, 3x or 2x disc side and radial non-disc should be fine, really. Almost all the wheels with build and spoke we provide lengths for are for that kind of setup, and we've not had any complaints. I know on my bikes I've got 2x or 3x disc, radial non-disc, and it's the same for Adam, Stan and Ali too. Thanks for that Mark, I am currently running 3x on both sides and that is plenty strong enough but was think that it was a bit much. I think I will go for a 3x disc and radial on the other side and see how it goes. Quote Link to comment Share on other sites More sharing options...
shamus Posted March 1, 2010 Report Share Posted March 1, 2010 ahhhh! this would explain why i found the spokes tarty sent for my front wheel build were too short on the non disk side!!! Ended up running it in this manner (3xdisk and radial non disk) and its perfectly fine, just felt odd building it after years of crossing spokes! Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted March 1, 2010 Report Share Posted March 1, 2010 ahhhh! this would explain why i found the spokes tarty sent for my front wheel build were too short on the non disk side!!! There will have been a 'Spoke Length Information' slip in your order, showing you which spokes went on which side and also which crossing to build them Quote Link to comment Share on other sites More sharing options...
shamus Posted March 1, 2010 Report Share Posted March 1, 2010 (edited) There will have been a 'Spoke Length Information' slip in your order, showing you which spokes went on which side and also which crossing to build them Correct, being a man however, i didn't need to look at any of the paper crap. Started lacing the disk side with the spokes i'd comapred and found the same as the previous build. I got to the non disk side (still 3x), realised i had made a boo boo. So I checked the order and realised the added info slip, which was enlightening. (thanks tarty) I subsequently went 'aaaaaaaaaaahhhhhhh! it makes sense' - *throws away paper slip and cracks on with build* Edited March 1, 2010 by shamus Quote Link to comment Share on other sites More sharing options...
