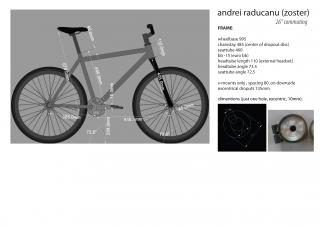

zoster Posted December 6, 2010 Report Share Posted December 6, 2010 hey, since i ordered a new trials frame from marino, i also ordered one to make a commuting bike (something like a fixed gear freestyle bike, only with a free hub and brakes) got my frame, and put some test wheels on.. does this look like a 73,5 head tube angle to you? wanna figure out if marino screwed up my ha or is just my imagination... here is what i asked for: thanks for taking a look Quote Link to comment Share on other sites More sharing options...
JD™ Posted December 7, 2010 Report Share Posted December 7, 2010 Looks somewhere near right to my tired eyes. Could it be that you're not using straight blade forks that's throwing you off there? You could measure it with a plumb line and some maths... Quote Link to comment Share on other sites More sharing options...
monkeyseemonkeydo Posted December 7, 2010 Report Share Posted December 7, 2010 You could measure it with a plumb line and some maths... Or do it the lazy way and rotate a picture in Microsoft Office Picture Manager (or similar) and rotate until it's vertical (or horizontal, whatever floats your boat) on the screen. Edit: Quick and dirty using the first picture in your post (which looks like it starts with the bike most level) Seems closer to 70.5 rather than 73.5. Quote Link to comment Share on other sites More sharing options...
zoster Posted December 7, 2010 Author Report Share Posted December 7, 2010 thanks for the pics, i'll try the plumb line thing as well, but i'm pretty sure is quite off, doesn't look right Quote Link to comment Share on other sites More sharing options...
eskimo Posted December 7, 2010 Report Share Posted December 7, 2010 Does look a tad too less, even if the forks are long seeing as the bb isn't -15mm by the looks of it. Probably best if you ask him and get the correct fork on. Quote Link to comment Share on other sites More sharing options...
zoster Posted December 7, 2010 Author Report Share Posted December 7, 2010 Does look a tad too less, even if the forks are long seeing as the bb isn't -15mm by the looks of it. Probably best if you ask him and get the correct fork on. forks are echo pure, so they are pretty standard for fixed 26" forks. in order to have a better (= steeper) head angle i would need shorter forks, but considering i am using a 26" wheel, you can't go much shorter then the echo pure. the ratio is about 17mm shorter fork for 1 degree steeper head angle. i need about 3 degrees more, that means about 50mm shorter fork, so about 355.mm fork length, which can't accommodate a 26' wheel... Quote Link to comment Share on other sites More sharing options...
isitafox Posted December 9, 2010 Report Share Posted December 9, 2010 You wanna try some pashley forks, they're too low in my opinion! Quote Link to comment Share on other sites More sharing options...
jambo Posted December 14, 2010 Report Share Posted December 14, 2010 pretty sure this beast is 73.5 but with 700cc wheels, yours looks slacker. Quote Link to comment Share on other sites More sharing options...
zoster Posted December 14, 2010 Author Report Share Posted December 14, 2010 marino saw there was a mistake and he is building another frame for me Quote Link to comment Share on other sites More sharing options...
jambo Posted December 14, 2010 Report Share Posted December 14, 2010 marino saw there was a mistake and he is building another frame for me should get him to copy the geo of that Brookylyn gangsta track gangsta geo Quote Link to comment Share on other sites More sharing options...
zoster Posted December 15, 2010 Author Report Share Posted December 15, 2010 should get him to copy the geo of that Brookylyn gangsta track gangsta geo i'm going 26" Quote Link to comment Share on other sites More sharing options...
Matthew62 Posted December 21, 2010 Report Share Posted December 21, 2010 I've been thinking about a Marino commuter for a while. How did you go about ordering yours as it doesn't seem abudantly clear how you would for a frame like this on there website. Also, if you don't mind me aksing what was the cost of it? Cheers. Quote Link to comment Share on other sites More sharing options...
zoster Posted December 21, 2010 Author Report Share Posted December 21, 2010 I've been thinking about a Marino commuter for a while. How did you go about ordering yours as it doesn't seem abudantly clear how you would for a frame like this on there website. Also, if you don't mind me aksing what was the cost of it? Cheers. send him an email with the specifications (i didn't use the online form either). a cromo frame is 250usd, but i got a discount 'cause my previous frame broke (but that wasn't cromo, it was carbon steel, and i did use it for 1,5 years) Quote Link to comment Share on other sites More sharing options...
