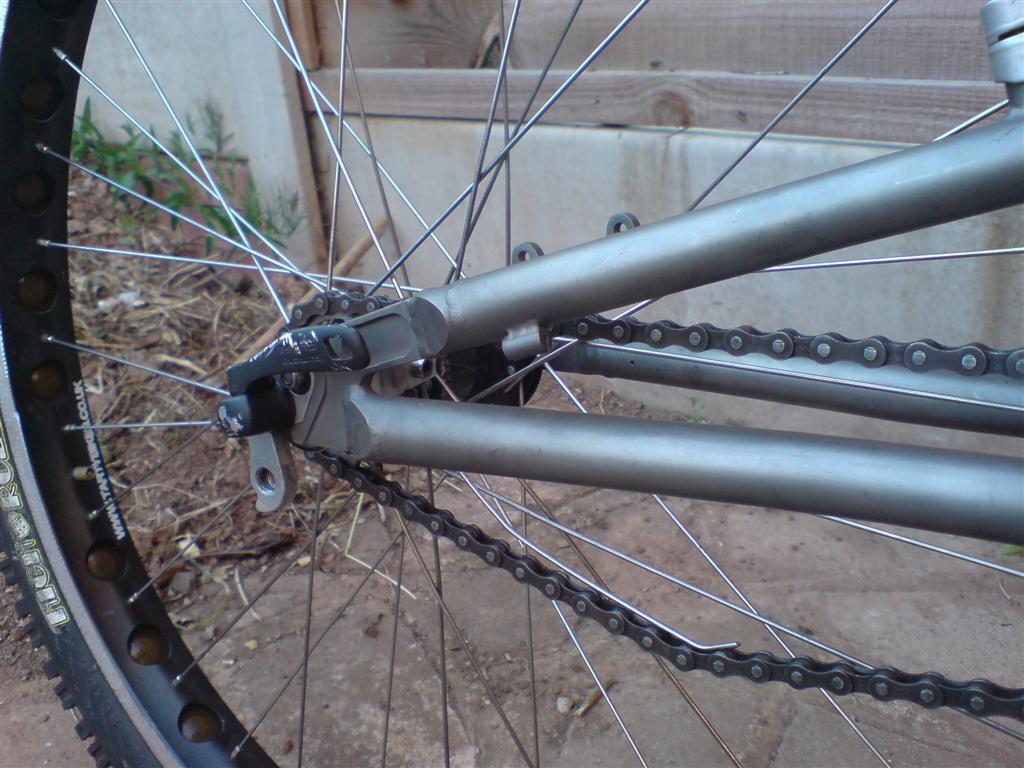

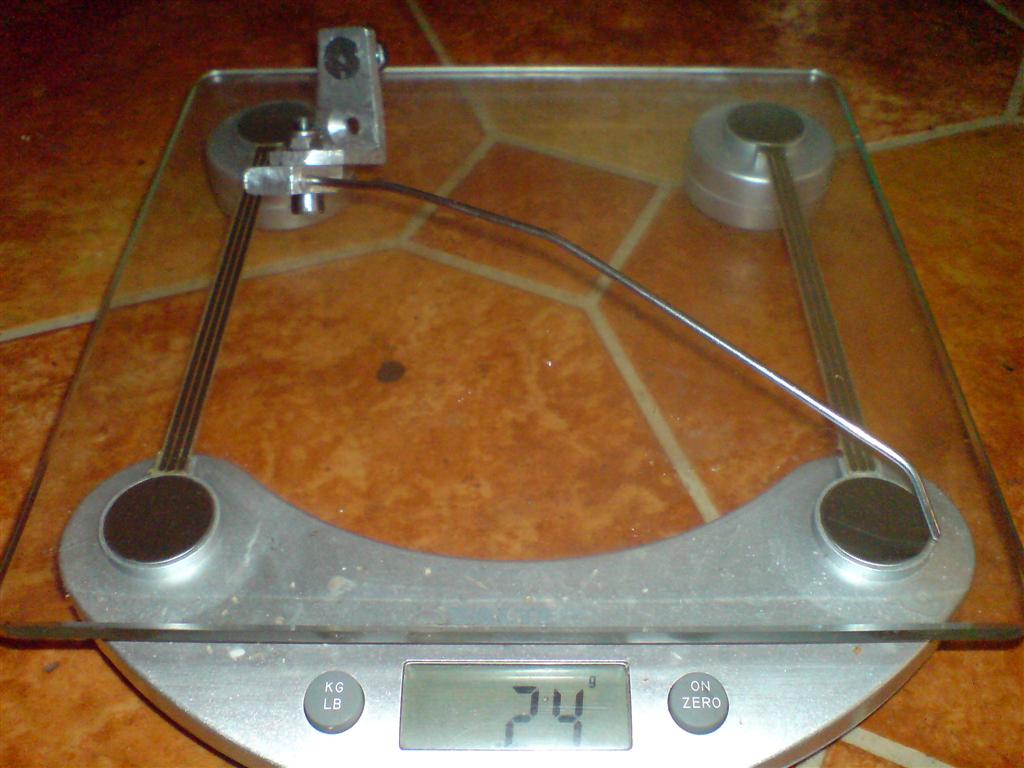

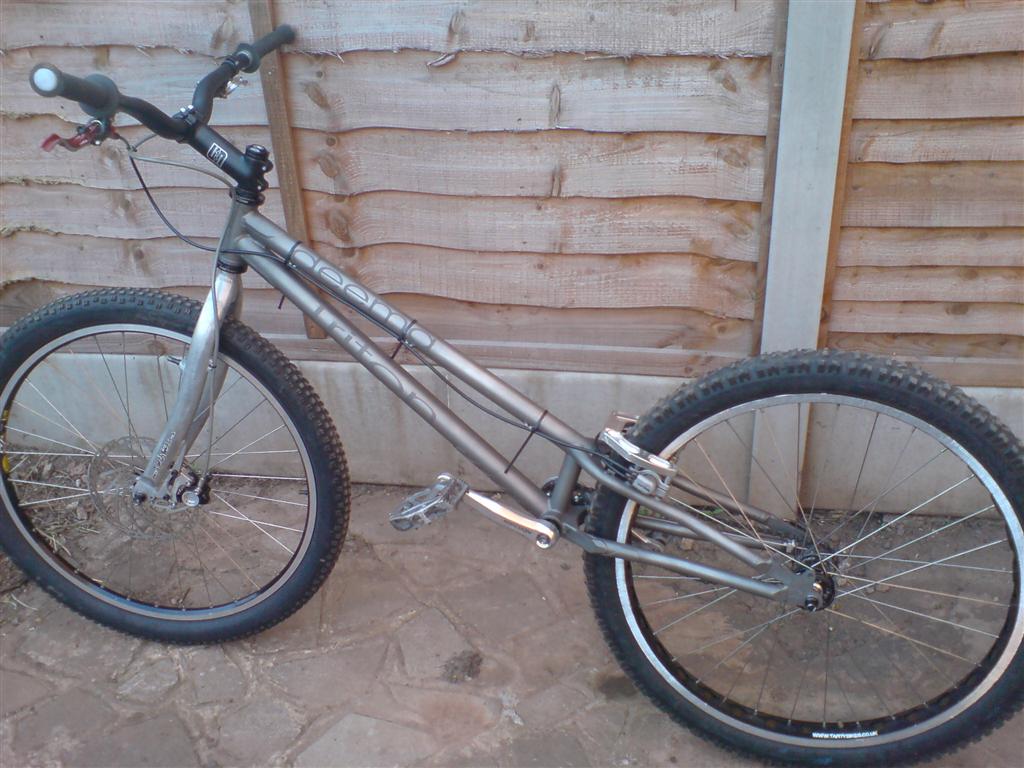

forteh Posted June 16, 2008 Report Share Posted June 16, 2008 (edited) Its built and has been ridden, its light, its flicky, its so damn easy to ride My only niggles are that the rear brake is too stiff with the 4 bolt control booster on and theres bugger all bite on the rear brake, going to test it with only 2 bolts through the booster to see how it goes. The chain tensioner needs some slight mods, mainly a shoe for the chain to run on, the plain spoke on its own has skipped off the chain a couple of times. Complete spec is: - Triton deema frame BT f6 fork FSA orbit xtreme headset with hope head doctor Atoms oversized stem Monty 221pr bars (extended by 100mm to 780 wide) ODI roughneck grips worn to paper thickness Wellgo MgTi pedals 165 Middleburn RS7s with heatsink cloud9 (18t) on a UN52 BB with a sram PC1 chain Home made chain tensioner Chris king disc go tech rear hub with 16t king cog laced into a tryall rim Highroller 2.5 in slow reezay dual ply with dh tube Hope xc font hub laced into a mavic xc717 rim Larsen TT 2.35 in super tacky single ply with standard tube HS33 slaves with RB ergo 1f lever, heatsink cnc reds, echo control booster and a water bleed Hope mono trial 203 disk with a +20 adaptor Complete weight 10.6kg or there abouts Alot of weight (about 300-400g I reckon) could be saved on the rear tyre and BB if I went down to a single ply and a hollow axle. Geo with BT f6 fork is: - WB 1080 BB +30 CS 385 Reach 670 Frame weight 1.585kg/3.487lb Homemade chain tensioner - 24g including all fixings edit: Shes now double disk and wearing the hope titanium BB Total weight of the bike is 10498g :) When the rear tyre dies I will put a schwalbe big betty on there and the weight should drop down to about 10.2kg All of this without cutting/drilling holes, fancy lightweight bolts or much else specifically lightweight (well apart from the frame, BB and pedals spindles which are titanium ) Excuse the crap phone photos Edited July 21, 2008 by forteh Quote Link to comment Share on other sites More sharing options...
chimpanzyyyy Posted June 16, 2008 Report Share Posted June 16, 2008 geo? looks beast Quote Link to comment Share on other sites More sharing options...
JonMack Posted June 16, 2008 Report Share Posted June 16, 2008 Looks awesome man! Nice one. Quote Link to comment Share on other sites More sharing options...
walker Posted June 16, 2008 Report Share Posted June 16, 2008 take it ur still waiting to get a rear disk? Anyway, looks pimp and i bet it rides even better! Will it work without the booster as it looks a bit overkill and is too shiny! Andrew Quote Link to comment Share on other sites More sharing options...
forteh Posted June 16, 2008 Author Report Share Posted June 16, 2008 geo? looks beast Tis in the post take it ur still waiting to get a rear disk? Anyway, looks pimp and i bet it rides even better! Will it work without the booster as it looks a bit overkill and is too shiny! Andrew Im planning on rigging up my front caliper onto the back with the rear hose and lever from my santacruz, will give me some indication of how its going to work as DD. I can only run a 180 rotor max on the back, any bigger and it just catches the frame, will try it and see. Still in 2 minds between a mono trial and a BB7 for the rear, I love the feel, power and bite of the front hope - is the BB7 the same feel at the lever or is it spongier? Ive not tested it without the booster yet, will have an experiment with it tomorrow; agree with you though it looks much better without it (also means I would be able to purge the only deng thing on the bike ) Quote Link to comment Share on other sites More sharing options...
chimpanzyyyy Posted June 17, 2008 Report Share Posted June 17, 2008 Tis in the post sorry :$ geo is cool Quote Link to comment Share on other sites More sharing options...
craigjames Posted June 17, 2008 Report Share Posted June 17, 2008 looks nice geo doenst sound as long as i thought it was gonna be. i found the rear bb7 was a bit spongie on the rear. Quote Link to comment Share on other sites More sharing options...
forteh Posted June 17, 2008 Author Report Share Posted June 17, 2008 (edited) The only difference from the geo posted on the triton website is the BB rise is +30 instead of +20, thats all dependant on forks though - I was after a +30 BB anyways so its all good The length isnt too bad at all, Im only short and I dont feel stretched out on it. Its 15mm shorter wb than the hifi and 15mm longer reach and feels just right. Im really leaning towards a 180 mono trial on the rear, whilst the BB7 might be more powerful I like to feel when the back brake has bitten, also the hope would seem to give more modulation Edited June 17, 2008 by forteh Quote Link to comment Share on other sites More sharing options...
dan_addison Posted June 17, 2008 Report Share Posted June 17, 2008 NIIIIIIIICE! Quote Link to comment Share on other sites More sharing options...
lil Jsy Chris Posted June 17, 2008 Report Share Posted June 17, 2008 Really nice, only ever seen a 20" Trition but that is very nice Quote Link to comment Share on other sites More sharing options...
uldis Posted June 17, 2008 Report Share Posted June 17, 2008 (edited) in Russia there are very much Triton stocks and mods... there's also one triton stock in Latvia... TRITON but this one is veery nice and lite! love it. uldis Edited June 17, 2008 by uldis Quote Link to comment Share on other sites More sharing options...
Revolver Posted June 17, 2008 Report Share Posted June 17, 2008 Not bad No dual disc? Quote Link to comment Share on other sites More sharing options...
forteh Posted June 17, 2008 Author Report Share Posted June 17, 2008 Not bad No dual disc? Working on that Quote Link to comment Share on other sites More sharing options...
Ben John-Hynes Posted June 17, 2008 Report Share Posted June 17, 2008 Probably the best looking bike I've ever seen! Quote Link to comment Share on other sites More sharing options...
that NBR dude Posted June 18, 2008 Report Share Posted June 18, 2008 Really nice, only ever seen a 20" Trition but that is very nice that was mine. Been floating round for a while. The Deema looks really good dude. You'll definitely enjoy riding it, its far mroe responsive than alu frames. Gives you that extra bit of spring, plus their geos are spot on. Quote Link to comment Share on other sites More sharing options...
forteh Posted June 18, 2008 Author Report Share Posted June 18, 2008 The Deema looks really good dude. You'll definitely enjoy riding it, its far mroe responsive than alu frames. Gives you that extra bit of spring, plus their geos are spot on. The feel of a steel frame, less weight and more strength than an aluminium frame = win! Its been built up for 2 days now and Ive only had the chance to ride it for 2 hours, not going to be able to ride now till monday night as Im moving my gf from london to lichfield tomorrow and off to bournemouth for a stag do on friday after work Gives my pulled bicep/forearm/elbow/tendons time to recover alittle I suppose Quote Link to comment Share on other sites More sharing options...

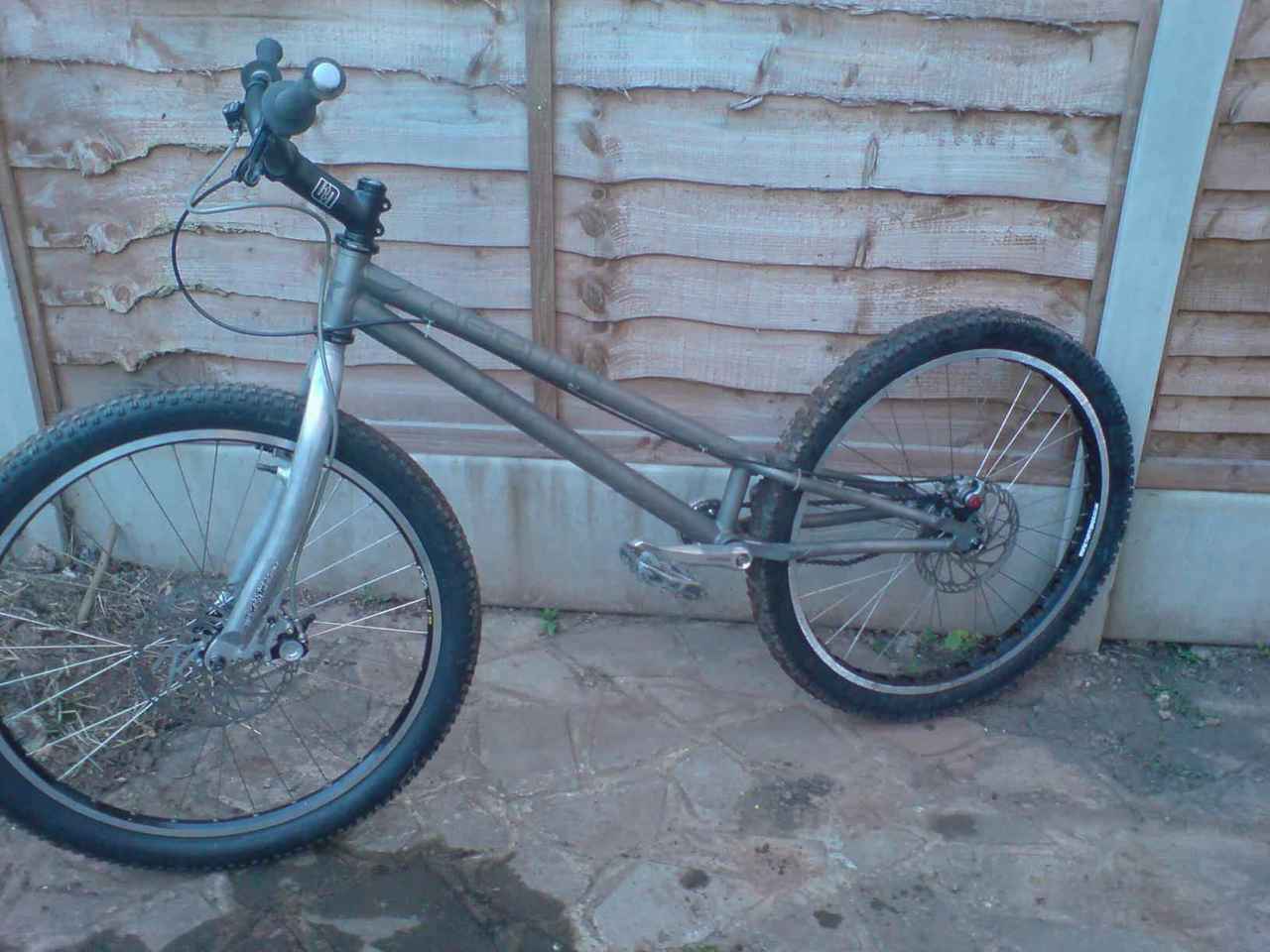

forteh Posted July 21, 2008 Author Report Share Posted July 21, 2008 Bump - Updated Quote Link to comment Share on other sites More sharing options...
ben_travis Posted July 21, 2008 Report Share Posted July 21, 2008 argh.....rear disc on stock.....disgusting.bike looks alreet though Quote Link to comment Share on other sites More sharing options...
forteh Posted July 21, 2008 Author Report Share Posted July 21, 2008 argh.....rear disc on stock.....disgusting.bike looks alreet thoughPfft, I like the quiet bike for now Now its bedded in its stopped slipping and isnt too bad - that said I dont really ride much big like yourself so its more than likely enough. Still got the maggie and RB lever on standby Quote Link to comment Share on other sites More sharing options...
N.Wood Posted July 23, 2008 Report Share Posted July 23, 2008 Ah you got it, good stuff! Hope it all went well with Simon, bike looks excellent Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted July 23, 2008 Report Share Posted July 23, 2008 Quote Link to comment Share on other sites More sharing options...
Greetings Posted July 23, 2008 Report Share Posted July 23, 2008 why can't i see any pictures? Quote Link to comment Share on other sites More sharing options...
forteh Posted July 23, 2008 Author Report Share Posted July 23, 2008 why can't i see any pictures? Not sure, my webhost is up Try http://www.fortyone30.eclipse.co.uk/Riding/deema/ Still undecided about the rear disk, might try it with the maggie on for the brum ride. Quote Link to comment Share on other sites More sharing options...
JonMack Posted July 23, 2008 Report Share Posted July 23, 2008 Get a Hope!! Quote Link to comment Share on other sites More sharing options...

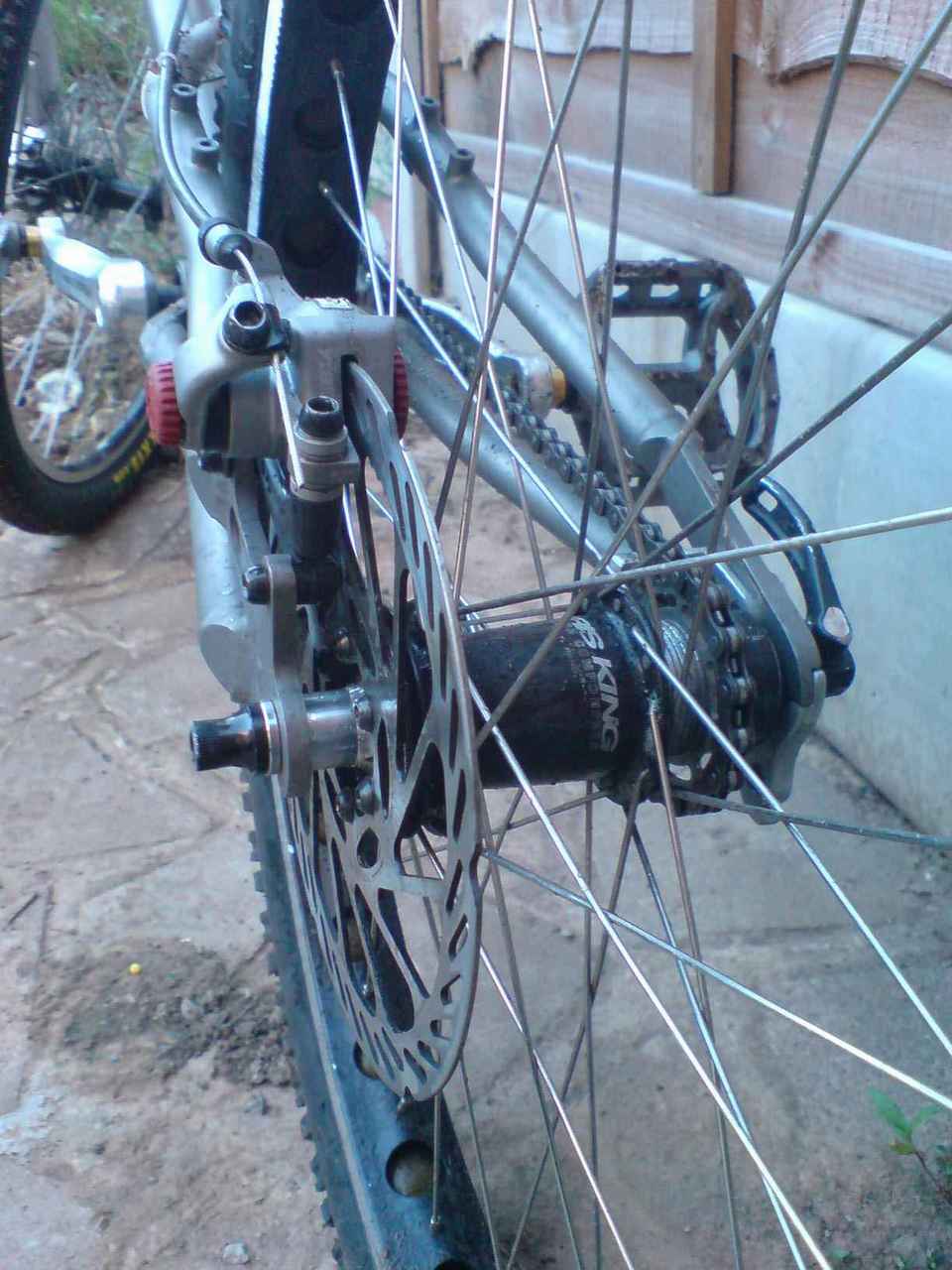

forteh Posted July 23, 2008 Author Report Share Posted July 23, 2008 Get a Hope!!Got one on the front, main problem is I cant get more than a 185 disk on the rear without reducing the thickness of the disk adaptor on the hub which in turn may bugger up the caliper alignment.The BB7 holds fine, the bite isnt as good as my 203 mono trial on the front but hey; I think Im also alittle too rusty and out of practise to be dealing with the spoke flex on top of all the other variables when on the back wheel - at least with the magura it locks and doesnt flex Quote Link to comment Share on other sites More sharing options...
