RobinJI Posted May 19, 2007 Report Share Posted May 19, 2007 (edited) Noticed quite a few threads and posts about 3D modeling lurking around, so I thought I'd make a thread for people to whack a screenshot or 2 of there work in. The go karts done in inventor 7, and the levers drawn and rendered (badley) in Solid Edge V19 Edited May 19, 2007 by Dont you Just Hate it When... Quote Link to comment Share on other sites More sharing options...
Si-man Posted May 19, 2007 Report Share Posted May 19, 2007 Mate is making a car on cad at the moment.He was porting the engine block yesterday and had it so that 4 of the pistons worked when you turn the crankshaftAlso got the turbo working with spinning turbine.Engine is mounted onto a subframe, not doing to bad really.Ill try an get pics when hes finished. Quote Link to comment Share on other sites More sharing options...
Walleee Posted May 19, 2007 Report Share Posted May 19, 2007 how do i embed youtube vids here? Quote Link to comment Share on other sites More sharing options...
Si-man Posted May 19, 2007 Report Share Posted May 19, 2007 (edited) Think its aint it?seen it done before..got it, youtube / youtube with the square brackets around em Edited May 19, 2007 by Si-man Quote Link to comment Share on other sites More sharing options...
Walleee Posted May 19, 2007 Report Share Posted May 19, 2007 (edited) I ballsed up look below, cheers guys! Edited May 19, 2007 by jake1516 Quote Link to comment Share on other sites More sharing options...
RobinJI Posted May 19, 2007 Author Report Share Posted May 19, 2007 (edited) HjK8GrSuNVwYou have to just put the last bit of the url, so you put [yout*be]HjK8GrSuNVw[/yout*be] Edited May 19, 2007 by Dont you Just Hate it When... Quote Link to comment Share on other sites More sharing options...
Todge Posted May 19, 2007 Report Share Posted May 19, 2007 I like CAD This was my last project, styling the bodywork for the uni's Formula Student car. A few screenshots of various views, with proposed livery. The best thing about this project is that its being made and will be raced! Currently in final stages of the full size clay model. Quote Link to comment Share on other sites More sharing options...
Walleee Posted May 19, 2007 Report Share Posted May 19, 2007 that's shit hot!I've been hmming and haaing over joining the formula student project when I go to dundee, that body work is immense! Quote Link to comment Share on other sites More sharing options...
OD404 Posted May 19, 2007 Report Share Posted May 19, 2007 Some rather sweet looking stuff in this thread I'd liked to have put some of the stuff I'm working on at the moment, such as modelling our 78litre block and putting together full engine assemblies, but unfortunately company confidentiality prevents me doing so Keep up the awesome work guys Quote Link to comment Share on other sites More sharing options...
munkee Posted May 19, 2007 Report Share Posted May 19, 2007 (edited) i have shitloads of cad.. its so easy! i did my whole house for a coursework and also designed an RAF fire stationThat was the kitchen of my house.. wasnt fully finished but you get the general idea ill have to dig up my folder with the other renders in.. the cooker looked f**king sexThe concept designs for the firestation:All done using autocad 2007 possibly the wankest out of all the cad programs Edited May 19, 2007 by Spacemunkee Quote Link to comment Share on other sites More sharing options...
Greetings Posted May 19, 2007 Report Share Posted May 19, 2007 Somewhat related. I could watch this vid all day, the movements seem so random yet are dead accurate. No wonder these machines cost more than a house. Youtube Video -> ">" type="application/x-shockwave-flash" wmode="transparent" width="425" height="350"> Quote Link to comment Share on other sites More sharing options...
monkeyseemonkeydo Posted May 19, 2007 Report Share Posted May 19, 2007 This was my last project, styling the bodywork for the uni's Formula Student car. A few screenshots of various views, with proposed livery. The best thing about this project is that its being made and will be raced! Currently in final stages of the full size clay model.But will it be raced this year? Our Formula Student team seem to do the same thing every year- decide that last year did it wrong and start again! The car's been in the same state for the past 4 odd years that I've seen it. Also, was any aero work carried out on the car? CFD or experimental? I avoided FS during my undergrad because I wanted to do aero work and it tended to be a very mechanical project.Dave Quote Link to comment Share on other sites More sharing options...
Todge Posted May 19, 2007 Report Share Posted May 19, 2007 But will it be raced this year? Our Formula Student team seem to do the same thing every year- decide that last year did it wrong and start again! The car's been in the same state for the past 4 odd years that I've seen it. Also, was any aero work carried out on the car? CFD or experimental? I avoided FS during my undergrad because I wanted to do aero work and it tended to be a very mechanical project.DaveYep, it sure will be. The team is going to the Silverstone, Hockenheim and Fiorano events this summer. Its was regarded "unnecessay" for us to wind tunnel test it and develop any aerodynamics, due to the relativly low speeds involved. I personally have an interest in aerodynamics, and would have loved to do some aero work on it, but our time scale wasnt kind enough for that. Quote Link to comment Share on other sites More sharing options...
Mod Man Leo Posted May 19, 2007 Report Share Posted May 19, 2007 Is it just me or did Hayes Rob that lever idea??????The new Stroker!!!Some realy funky stuff on this thread!! Quote Link to comment Share on other sites More sharing options...
Ash-Kennard Posted May 19, 2007 Report Share Posted May 19, 2007 its a magura... Quote Link to comment Share on other sites More sharing options...

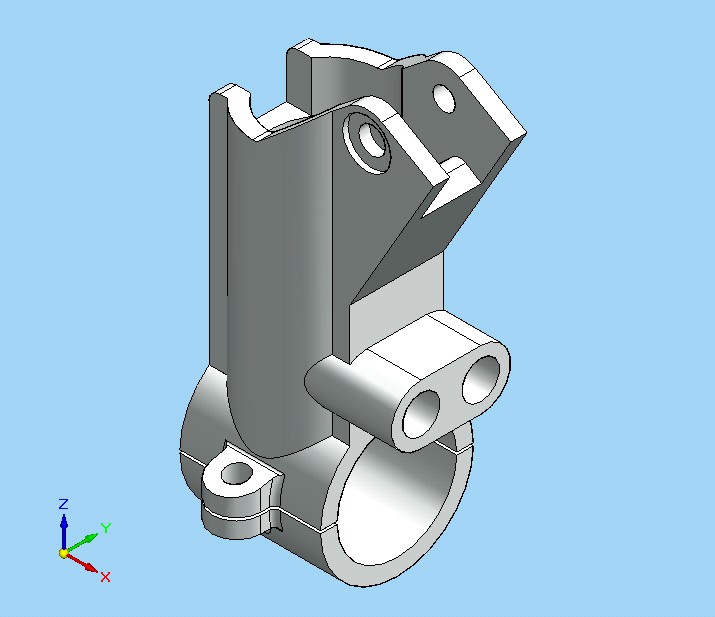

RobinJI Posted May 19, 2007 Author Report Share Posted May 19, 2007 Well, its not a standard magura, its a lever to fit a magura blade and TPA that has a 20mm master cylender and 2 hose outputs, I designed it for Luke so he could use both breaks off of the one lever. Which is why the blades only crappy, 'cos thats not the bit I was designing.That hayes looks sexy, but looks like you'd kill it in a DH bail instantly! Quote Link to comment Share on other sites More sharing options...
Si-man Posted May 19, 2007 Report Share Posted May 19, 2007 its a magura...Nah it looks better made Quote Link to comment Share on other sites More sharing options...
Tom Booth Posted May 20, 2007 Report Share Posted May 20, 2007 For my final project at college, we had our own brief to set and work with ect, I chose to design a minimalist piece of furniture/storage unit that was totally versitile to any needs. Its no where near as good as half of the solidworks stuff up there ^ But it shows my idea preety well, The idea of using boxes cae about to create storage and still be able to be made flat pack to suit comsumer needs. Usig the hooks means users can adapt the amount of boxes they use on a single system. The 2 rails are held in place through suction cups, not the usual small lame ones, something like the ones used for moving glass panes ect. Modeled using Lightwave 9.2. Quote Link to comment Share on other sites More sharing options...
ManxTrialSpaz Posted May 20, 2007 Report Share Posted May 20, 2007 Somewhat related. I could watch this vid all day, the movements seem so random yet are dead accurate. No wonder these machines cost more than a house.That's probably because it's the size of a f**kin house! That thing looks so expensive,,,all the things it does Quote Link to comment Share on other sites More sharing options...
Tom Booth Posted May 20, 2007 Report Share Posted May 20, 2007 Just been plaing about with my frame design. Looks a load better now I feel. Quote Link to comment Share on other sites More sharing options...
Shaun H Posted May 20, 2007 Report Share Posted May 20, 2007 Anyone know where I might be able to "borrow" a good CAD programme?I start Mechanical Engineering in September so getting some practice in would be nice. Quote Link to comment Share on other sites More sharing options...
OD404 Posted May 21, 2007 Report Share Posted May 21, 2007 Anyone know where I might be able to "borrow" a good CAD programme?I start Mechanical Engineering in September so getting some practice in would be nice.Find out what program they are using first, no point learning one just to find that you will be using something else. The method is always the same, but menus will differ and there are always little quirks with each different program (I use ProE at work and still try using shortcuts for Unigraphics which I used at uni with no joy).When you know what you will be using drop me a pm and I will see what I can do Or if you are lazy, pm me anyways and I'll recommend something to get you started... Quote Link to comment Share on other sites More sharing options...
Davetrials Posted May 21, 2007 Report Share Posted May 21, 2007 HjK8GrSuNVwYou have to just put the last bit of the url, so you put [yout*be]HjK8GrSuNVw[/yout*be]is that how all stuff is made, like scraping away at a metal block, ive never botherd with 3d modlng so ive no idea at all how it works. Quote Link to comment Share on other sites More sharing options...
poopipe Posted May 21, 2007 Report Share Posted May 21, 2007 is that how all stuff is made, like scraping away at a metal block, ive never botherd with 3d modlng so ive no idea at all how it works.no Dave, you use a computer utter madness - I must have hundreds of finished models on this machine and only 1 render (even that's not the finished article). That's the wonderful world of realtime graphics for you...AK74 in under 1000 polygons. Quote Link to comment Share on other sites More sharing options...
br3n Posted May 21, 2007 Report Share Posted May 21, 2007 two college peices, both modelled in autocad and rendered in 3dsm. will link more pics when i've redone my portfolio. Quote Link to comment Share on other sites More sharing options...
